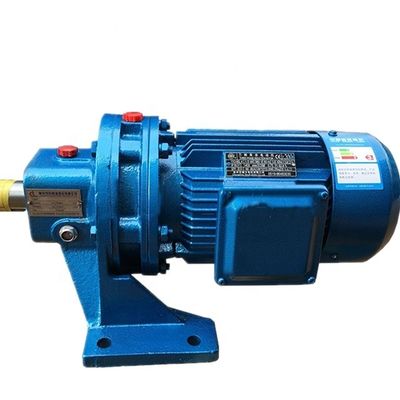

Small Transmission Planetary Cycloid Reducer Gearbox 43:1 Customized

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	5-8 work days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	150sets per month

Detail Information

Product Description

Detail Information

Place of Origin

chinaPort

Brand Name

FANBAO

Certification

Model Number

Gearing Arrangement:

Planetary Motor

Output Torque:

2.6-1195N.M

Input Speed:

300-1800Rpm

Output Speed:

14-280rpm

Weight (KG):

Product Name:

Bwd4 Horizontal Foot Plate Mounted Ordinary Motor Direct Link Cycloidal Pin Gearbox

Ratio:

9-2800

Material:

Steel Or Cast Iron

Port:

Shanghai, Ningbo

Highlight:

Transmission Cycloid Reducer

customized Cycloid Reducer

Cycloid planetary reducer gearbox

Product Description

Small Transmission Planetary Cycloid Reducer Gearbox 43:1 Customized

Product Specifications

Attribute	Value
Gearing Arrangement	Planetary motor
Output Torque	2.6-1195N.M
Input Speed	300-1800Rpm
Output Speed	14-280rpm
Weight	30kg
Product Name	Bwd4 Horizontal Foot Plate Mounted Ordinary Motor Direct Link Cycloidal Pin Gearbox
Ratio	9-2800
Material	Steel or cast iron
Port	Shanghai, Ningbo

Product Description

Cycloidal Gear Reducer Small Transmission Gearbox 43:1 Cycloidal Gearing Arrangement Gear Reducer

Cycloid reducer is a cycloid needle teeth meshing planetary transmission principle drive models, is an ideal transmission has many advantages, versatile, and can be both positive and negative operation.

Perfect for the machinery and equipment of following industries:

Power Plant Equipment
Metallurgical Industry
Metal Forming Machinery
Petrochemical Industry & Mining Machine
Hoisting Machinery
Construction Industry
Environmental Protection Industry
Cable Industry
Food Machinery

Key Features

Single stage drive with reduction ratio 1:87, high efficiency
Input shaft and output shaft are in the same axis, so it's compact in structure
Cycloid gear with high overlap coefficient, steady the machine and lower the noise
The reducer is made by bearing steel, it's has a long service life

Technical Parameters

Parameter	Specification
Stage number	One-stage two-stage
Housing material	Iron casting
Hardness of tooth surface	HRC58-62
Installation type	Horizontal or vertical
Color	Customer requirements
Bearing	NSK NAK, FAG HRB, etc.
Ratio	9-7569

Dimensional Specifications

SIZE	Contour Dimensions	Installation Dimensions	Size of shaft End	Weight(kg)
M	W	Z	X	H	E	F	P	Q	S	T	N	G	B	C	D	L
b	C	d	Y	BW	BWD	BW	BWD	BW.BWD V10-9	BV10	100	144	192	140	150	140	80
47	12	76	120	35	4	11	6	24.5	22	30	5	17	15	22	15
BW	BV11	120	180	197	145	160	140	90	60	12	90	150	40	4	11
8	31	28	35	5	17	15	22	15	B0	120	185	215	165	190	168
