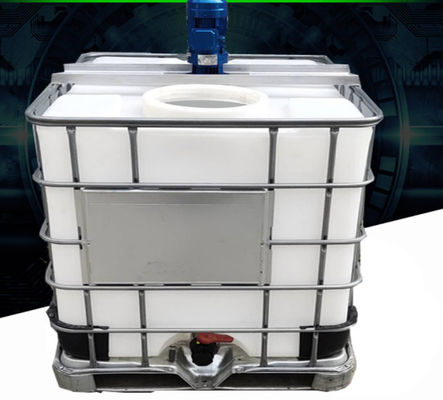

High Speed Electric 265 Gallon IBC Tote Mixer Container Cream Homogenizing
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 150sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
High Speed Mixer:
0-1400rpm
Core Components:
Motor, Gear, Gearbox, Bearing
Application:
Stortage And Mixing
Material:
PE
Tank Color:
White/blue/yellow/others
Highlight:
Cream Homogenizing ibc tote mixer
,265 Gallon ibc tote mixer
,Electric ibc container mixer
Product Description
High Speed Electric 265 Gallon IBC Tote Mixer Container Cream Homogenizing
Product Attributes
| Attribute | Value |
|---|---|
| High speed mixer | 0-1400rpm |
| Core Components | Motor, Gear, Gearbox, Bearing |
| Application | Storage and mixing |
| Material | PE |
| Tank Color | white/blue/yellow/others |
Product Description
The High Speed Electric Mixer 265 Gallon IBC Tank is designed for cream homogenizing and mixing applications. IBC (Intermediate Bulk Containers) are essential for modern storage and transportation of liquid products, featuring a durable inner container made from high molecular weight, high density polyethylene for strength, corrosion resistance, and hygiene.
IBC Tank Specifications
| Product number | Capacity | Length (mm) | Width (mm) | Height (mm) | Caliber (mm) | Wall thickness (mm) | Weight (KG) | Volume (m³) |
|---|---|---|---|---|---|---|---|---|
| 500L Liner | 500L | 960 | 580 | 970 | 150 | 4 | 15 | 0.55 |
| 500L Full set | 500L | 1000 | 640 | 1150 | 150 | 4 | 41 | 0.75 |
| Horizontal 500L Liner | 500L | 1140 | 950 | 550 | 150/310/450/650 | 4 | 18 | 0.6 |
| Horizontal 500L Full set | 500L | 1200 | 1000 | 700 | 150/310/450/650 | 4 | 0.85 | |
| 1000L Liner | 1000L | 1150 | 960 | 950 | 150 | 2 | 15 | 1.1 |
| 1000L Full set | 1000L | 1200 | 1000 | 1150 | 150 | 2 | 55 | 1.4 |
| 1500L Liner | 1500L | 1150 | 960 | 1490 | 150 | 5 | 50 | 1.65 |
| 1500L Full set | 1500L | 1200 | 1000 | 1620 | 150 | 5 | 1.95 |
Blade Specifications
| Unfolded diameter | Inner hole diameter | Shrink diameter | Blade thickness | Blade width |
|---|---|---|---|---|
| 70mm | 8mm | 32mm | 2mm | 10mm |
| 100mm | 8mm | 32mm | 2mm | 10mm |
| 120mm | 8mm | 32mm | 2mm | 10mm |
| 200mm | 12mm | 55mm | 3mm | 25mm |
| 250mm | 12mm | 55mm | 3mm | 25mm |
| 300mm | 12mm | 55mm | 3mm | 25mm |
| 350mm | 20mm | 98mm | 4mm | 40mm |
| 400mm | 20mm | 98mm | 4mm | 40mm |
| 500mm | 30mm | 98mm | 5mm | 40mm |
| 600mm | 50mm | 113mm | 5mm | 40mm |
Four Types of IBC Tanks Available
Choose from hoisting extra thick, large caliber ton barrel, tow bucket, or model with pulley base configurations.
The inner tank is constructed from high-density polyethylene (HDPE) plastic, offering resistance to acid, alkali, corrosion, high temperatures, and abrasion. The frame features round tube embossed welding for durability, and includes a standard screw cap for pressure regulation.
