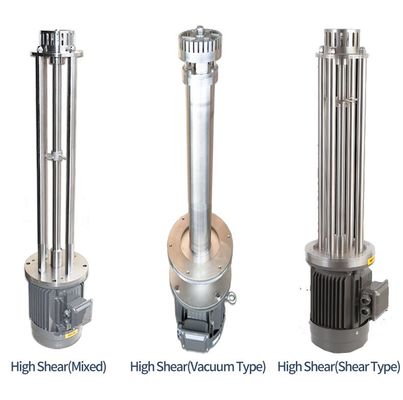

Stainless Steel Portable Agitator Mixer Cosmetic High Shear Homogenizer Pneumatic Lifting
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 150sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Mixing Tank Size:
100L To 20000L
Mixer Power:
1.5kw-11kw. Or Customizable
Homogenizer:
2930 RMP
Material:
SUS304, SUS304L, SUS316, SUS316L
Surface Finish:
Mirror Polish
Motor Power:
1.5kw
Max. Loading Capacity:
500kg
Heating Method:
Electric Heating
Weight:
85kg
Highlight:
portable agitator mixer Homogenizer
,High Shear portable agitator mixer
,Stainless Steel high shear mixer homogenizer
Product Description
Stainless Steel Portable Agitator Mixer Cosmetic High Shear Homogenizer Pneumatic Lifting
Product Specifications
| Mixing Tank Size | 100L to 20000L |
| Mixer Power | 1.5kw-11kw (customizable) |
| Homogenizer Speed | 2930 RPM |
| Material | SUS304, SUS304L, SUS316, SUS316L |
| Surface Finish | Mirror Polish |
| Motor Power | 1.5kw |
| Max. Loading Capacity | 500kg |
| Heating Method | Electric Heating |
| Weight | 85kg |
Product Overview
The Stainless Steel Cosmetic High Shear Pneumatic Lifting Homogenizer Mixer is engineered for efficient mixing of oil and water phases to create stable, homogeneous emulsions. Its high shear mixing capability ensures rapid dispersion and prevents agglomeration issues, particularly when incorporating gums like Carbopol.
Key Features
- Precision engineered rotor & stator with single/double vortex design
- Rotation speed: 0-3000rpm
- Pneumatic lifting height: 900mm
- Operating air pressure: 0.4Mpa
- 3kw motor power
- Portable design for easy operation and stable performance
Customizable Mixing Tank Options
| Parameter | Options |
|---|---|
| Profile/Type | Single layer tank, Double layers tank, Three layers tank |
| Material | SS304L, SS316L |
| Volume | 100L-20000L |
| Tank Type | Vertical, Horizontal, Mobile |
| Heating Method | Electric Heating, Steam Heating |
| Surface Finish | Mirror polished (Ra<0.4um) interior, 2B Satin exterior |
| Stirrer Types | Impeller, Anchor, Turbine, High shear, Magnetic mixer, Anchor mixer with scraper |
Technical Specifications by Model
| Model | Heater (KW) | Mixer (KW) | Mixer Speed (RPM) | Homogenizer (KW) | Homogenizer Speed (RPM) |
|---|---|---|---|---|---|
| DFM-200L | 6 | 1.5 | 0-63 | 4 | 2890 |
| DFM-300L | 9 | 2.2 | 0-63 | 4 | 2890 |
| DFM-500L | 18 | 3-4 | 0-63 | 5.5 | 2900 |
| DFM-1000L | 27KW/steam | 4-5.5 | 0-63 | 7.5 | 2900 |
| DFM-2000L | 27KW/steam | 5.5 | 0-63 | 11 | 2930 |
| DFM-3000L | 36KW/steam | 7.5 | 0-63 | 15 | 2930 |
| DFM-5000L | 48KW/steam | 11 | 0-63 | 22 | 2940 |
| Customizable | All specifications can be customized to customer requirements | ||||
Operation Principle
The movable high shear mixer homogenizer quickly and evenly disperses phases through high-speed rotation (15-40m/s line speed). The precision rotor-stator design creates strong mechanical and liquid shearing forces, centrifugal force, pressing, and liquid fraction in the narrow processing chamber. This action thoroughly emulsifies, homogenizes, and breaks down materials, producing stable, high-quality products.
Working Process
High-speed rotor rotation generates centrifugal force that draws material into the operation chamber. The material undergoes intense mechanical processing in the rotor-stator gap before being ejected radially. Multiple circulation cycles through this process ensure complete dispersion and emulsification.
