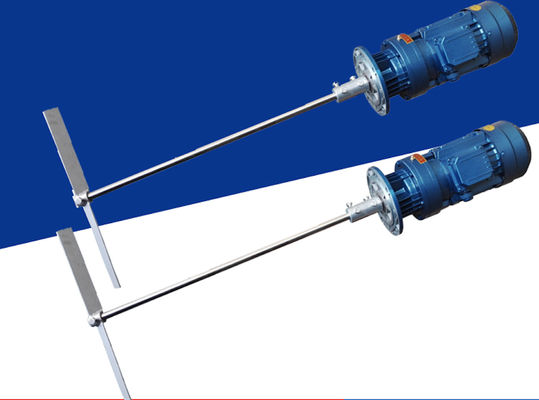

Sewage Treatment 55 Gallon Drum Agitator Liquid Mixer BLD Vertical IBC Stirrer

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	5-8 work days
Payment Method:	T/T
Supply Capacity:	100sets/month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

D09

Material:

Stainless Steel

Mixing Applicartion:

Liquid Mixing ,powder And Liquid Mixing ,Solid Mixing

Impeller:

Corrosion-resistant Stainless Steel Impeller

Product Name:

304 Stainless Steel Stirrer Blender Mixing Tank With Agitator Chemical Liquid Soap Mixer Agitator

Blade:

Three Leaf , "_" Shape , Three Blade High Efficiency Type , Customized Made

Phase:

Single Phase Or Three Phase

Shaft Thick:

16mm 25mm 38mm 57mm 76mm

Power:

0.2kw ,0.37kw , 0.55kw , 0.75kw , 1.1kw , 1.5kw , 2.2kw , 3kw , 4kw , 5.5kw , 7kw , 11kw And So On

Highlight:

55 gallon drum agitator stirrer

BLD Vertical 55 gallon drum agitator

Sewage Treatment ibc stirrer

Product Description

Industrial sewage treatment liquid mixer BLD vertical dosing mixer cycloid mixer

Description :

Configurations: Gearmotor/Gear Reducer, Flanged Type Support, Shaft Coupling, Pole Shaft and Impeller.
Gearmotor/Gear Reducer: Supplied them with famous brand, to assured agitator with first-class quality.
Flanged Type Support: Rotating speed,viscosity and capacity etc are the factors to be considered. All flanged type support are precision machined to increase their operation stability. According to different environments,we will select the most suitable materials for flanged type support.
Pole Shaft: Length following customers' need,materials SS304,SS316 ,plastic lining and so on
Impeller: Diameter following customers' need,materials SS304,SS316,flat-paddle(two blades),Propeller(three blades)

Specification for mixing agitator

Poollength or diameter (m)< Pool depth(m)	0.5-1	1-1.5	1.5-2	2-3	3-4	4-5	5-6	6-7	7-8
Poollength or diameter (m)< Pool depth(m)	Power (kw)	Power (kw)	Power (kw)	Power (kw)	Power (kw)	Power (kw)	Power (kw)	Power (kw)	Power (kw)
1	0.37	0.75	1.5	1.5	2.2	3	4	5.5	7.5
2	0.55	0.75	1.5	2.2	3	4	5.5	7.5	11
3	0.55	1.1	1.5	3	4	5.5	7.5	11	15
4	0.75	1.5	2.2	3	5.5	7.5	7.5	11	15
5	1.1	1.5	2.2	3	5.5	11	11	15	18.5
6	1.1	1.5	2.2	4	7.5	11	11	15	18.5

The power selection of this meter is only suitablefor generalviscosity wastewater.The viscosityis relatvely large and needs to be calculated separately.

Features :

Sewage Treatment 55 Gallon Drum Agitator Liquid Mixer BLD Vertical IBC Stirrer 5

Sewage Treatment 55 Gallon Drum Agitator Liquid Mixer BLD Vertical IBC Stirrer 7

More agitators for your choice

Sewage Treatment 55 Gallon Drum Agitator Liquid Mixer BLD Vertical IBC Stirrer 8

Sewage Treatment 55 Gallon Drum Agitator Liquid Mixer BLD Vertical IBC Stirrer 9
