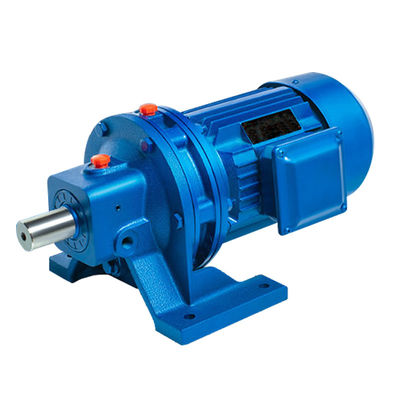

Small Cycloidal Gear Reducer Pinwheel Flange Mounting For Concrete Mixer

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 5-8 work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 150sets per month
Detail Information
Product Description
Detail Information
Place of Origin
chinaPort
Brand Name
FANBAO
Gearing Arrangement:
Planetary Motor
Output Torque:
108100N.m
Input Speed:
750-1500rpm
Output Speed:
0.64-350rmp
Weight (KG):
10kg
Material:
Steel Or Cast Iron
Port:
Shanghai, Ningbo
Mounting:
Foot Mounted, Flange Mounted
Highlight:

Small Cycloidal Gear Reducer

,

Concrete Mixer Cycloidal Gear Reducer

,

Flange Mounting small cycloidal gearbox

Product Description

BLW Cyclo Drive Pinwheel Flange Mounting Gear Box Speed Reducer X/B Series For Concrete Mixer

Description :

Cycloidal Pinwheel Reducer is a speed reducing construction with advance design,novel structure adopting the principle of planet driving and the falling-in of cycloidal pin gear. It is widely applied to the speed reducing structure of various driving machineries ,such as lift ,transportation,mine,metallurgy,petrolchemical,texitile,prention,lightindustry,pharmacy,food,forage,food machinery,ect.

Small Cycloidal Gear Reducer Pinwheel Flange Mounting For Concrete Mixer 0


model		 Power
(KW
)		 shaft
diameter
(mm)		 Center
height
(mm)		 Mounting
pitch
(mm)
key size
(mm)		 shaft
length
(mm)		 Shaft to
hole
(mm)
BWD-B0-

0.75		 0.75 30 100 90*150 8 35 93
BWD-B1-1.1 1.1 35 120 110*240 10 56 125
BWD-B1-1.5 1.5 35 120 110*240 10
10		 56 125
BWD-B2-2.2 2.2 45 140 150*280 14 68 144
BWD-B2-3.0 3.0 45 140 150*280 14 68 144
BWD-B3-5.5 5.5 55 160 200*340 16 80 149
BWD-B3-7.5 7.5 55 160 200*340 16 80 149


Small Cycloidal Gear Reducer Pinwheel Flange Mounting For Concrete Mixer 1





Small Cycloidal Gear Reducer Pinwheel Flange Mounting For Concrete Mixer 2

Small Cycloidal Gear Reducer Pinwheel Flange Mounting For Concrete Mixer 3

Small Cycloidal Gear Reducer Pinwheel Flange Mounting For Concrete Mixer 4

Small Cycloidal Gear Reducer Pinwheel Flange Mounting For Concrete Mixer 5
