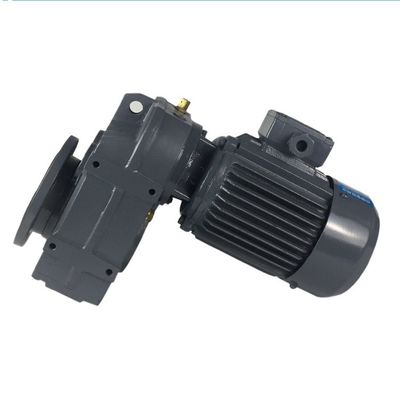

OEM FA Bevel Helical Gear Box Motor Flange Mounted Speed Reducers

The FA Helical Motor with Gear Motor Flange Mounted Speed Reducers series is designed based on a modular combination system, offering multiple motor combinations, installation forms, and structural configurations.

Featuring a high-rigidity cast iron box with ribs, these reducers incorporate hard-tooth surface gears made from premium alloy steel. The gears undergo carburizing, quenching, hardening, and precision grinding for stable transmission, low noise, and exceptional load capacity. With low temperature rise and extended service life, these units are widely used in metallurgy, wastewater treatment, chemical, and pharmaceutical industries.

• International Standards Compliance: Manufactured to meet global technical standards with advanced scientific and technological integration.
• Compact & Durable Design: Space-saving construction with high overload capacity, supporting power outputs up to 90KW or more.
• Energy Efficient: Parallel shaft helical gear reducer with low energy consumption and efficiency exceeding 95%.
• Quiet Operation: Minimal vibration and noise levels with significant energy savings, featuring premium segment steel material and rigid cast iron housing.
• Precision Engineering: Meticulously machined for perfect shaft parallelism and positioning accuracy, with mechatronic integration for superior gear motor performance.

• Parallel output design with compact structure, delivering large transmission torque, stable operation, low noise, and long service life.
• Multiple installation options: base installation, hollow shaft installation, flange installation, torque arm installation, small flange installation.
• Basic type secondary input and output rotation direction is identical, while third level is opposite (consult for F/R combinations).
• Output options: hollow shaft or solid shaft output.
• Average efficiency: 96% (second stage), 94% (third stage), 85% (F series/R series combination).

F series: F37, F47, F57, F67, F77, F87, F97, F107, F127, F157

FA series: FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157

FF series: FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157

FAF series: FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157

FAZ series: FAZ37, FAZ47, FAZ57, FAZ67, FAZ77, FAZ87, FAZ97, FAZ107, FAZ127, FAZ157
