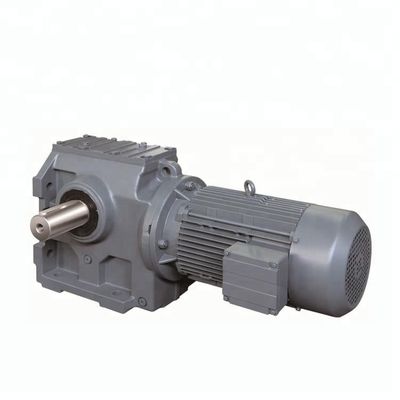

S37 Series Parallel Gearbox Helical Gear Worm Reducer 220v

Products

Rotary Airlock Valve

anna@rotary-reducer.com

+86-15300538565

Contact Now

S37 Series Parallel Gearbox Helical Gear Worm Reducer 220v

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

CE. ISO9001

Model Number

S/sa/saf/saz/sf37

Output Torque:

10-4890(N.M)

Input Speed:

1450rpm

Output Speed:

0.12-397(rpm)

Warranty:

1 Year

Color:

Customer Requirement

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Foot,flange,torque,arm,hollow/s

Gearing Arrangement:

Highlight:

Parallel gearbox helical gear

220v gearbox helical gear

220v parallel helical gearbox

Product Description

S37 Series Parallel Gearbox Helical Gear Worm Reducer 220v

Product Specifications

Attribute	Value
Output Torque	10-4890(N.M)
Input Speed	1450rpm
Output Speed	0.12-397(rpm)
Warranty	1 year
Color	Customer Requirement
Efficiency	94%~98%(depends on the transmission stage)
Mounting Position	Foot, flange, torque, arm, hollow/s
Gearing Arrangement	Worm

Product Overview

The S37 Series Helical Worm Gear Reducer combines helical gear and worm gear technologies in a high-stainless cast iron case, offering superior efficiency and strength compared to standard aluminum worm gearboxes. This modular design provides outstanding performance across industrial applications with customizable torque and speed requirements.

Key Features

Combination of helical gear and worm gear for improved torque and efficiency
Complete specifications with wide speed range and excellent versatility
Concave/convex heat dissipation surface for strong vibration absorption
Excellent sealing performance and environmental adaptability
High transmission precision suitable for frequent starting operations
High wear-resistant materials with special heat treatment for durability
Compatible with various motor types for electromechanical integration

Technical Specifications

Parameter	Value
Gear Material	20CrMnTi alloy steel
Surface Hardness	HRC58°~62°
Core Hardness	HRC33~40
Shaft Material	42CrMo alloy steel
Shaft Hardness	HRC25~30
Gear Precision	Accurate grinding, 6~5 Grade
Lubricating Oil	GB L-CKC220-460, Shell Omala220-460
Noise Level (MAX)	60~68dB
Temperature Rise (MAX)	40℃
Oil Temperature Rise (MAX)	50℃
Vibration	≤20μm
Backlash	≤20Arcmin

Size Specifications

SIZE	Shaft Dia. (mm)	Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
37	φ20k6	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6	280	φ450	1.50-22.0	12.5-230.48	4000	170

Product Images
