OEM S37 vertical Helical Bevel Reducer Gearbox Assembly
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 8-15work days |
| Payment Method: | T/T |
| Supply Capacity: | 100sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE. ISO9001
Model Number
S/sa/saf/saz/sf37
Output Torque:
10-4890(N.M)
Input Speed:
1450rpm
Output Speed:
0.12-397(rpm)
Warranty:
1 Year
Color:
Customer Requirement
Efficiency:
94%~98%(depends On The Transmission Stage)
Mounting Position:
Foot,flange,torque,arm,hollow/s
Gearing Arrangement:
Worm
Highlight:
OEM helical bevel reducer
,helical bevel reducer Assembly
,OEM helical gear box assembly
Product Description

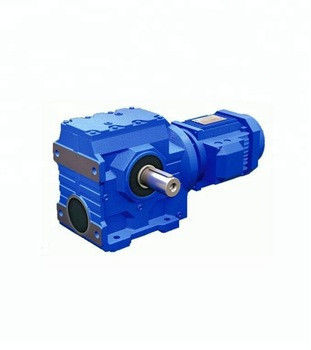

OEM S37 Vertical Helical Bevel Reducer Gearbox Assembly
Product Specifications
| Output Torque | 10-4890 (N.M) |
| Input Speed | 1450rpm |
| Output Speed | 0.12-397 (rpm) |
| Warranty | 1 year |
| Color | Customer Requirement |
| Efficiency | 94%~98% (depends on transmission stage) |
| Mounting Position | Foot, flange, torque, arm, hollow/s |
| Gearing Arrangement | Worm |
S37 0.12-22KW S Series Gearbox Reducer
The S Series gearbox reducer combines helical and worm gears to enhance machine torque and efficiency. This series offers comprehensive specifications, broad speed range, exceptional versatility, and compatibility with various installation methods. It excels in performance, safety, reliability, longevity, and adherence to international standards.
Key Features
- Simple linear structure for easy installation and maintenance
- Utilizes advanced world-famous brand components in pneumatic and electric parts
- High pressure double crank controls die opening and closing
- Highly automated and intelligent operation with no pollution
- Compatible with air conveyor linkers for direct inline filling machine connection
Technical Specifications
| Gear material | 20CrMnTi alloy steel |
|---|---|
| Surface hardness of gears | HRC58°~62° |
| Gear core hardness | HRC33~40 |
| Input/Output shaft material | 42CrMo alloy steel |
| Input/Output shaft hardness | HRC25~30 |
| Machining precision of gears | Accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | Tempering, cementing, quenching, etc. |
| Efficiency | 94%~96% (depends on transmission stage) |
| Noise (MAX) | 60~68dB |
| Temperature rise (MAX) | 40℃ |
| Temperature rise (Oil) (MAX) | 50℃ |
| Vibration | ≤20μm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China top brand bearing, or other brands upon request |
Size and Performance Data
| SIZE | Shaft Dia. (mm) | Center Height | Output Flange Dia. (mm) | Power (kw) | Ratio | Permissible Torque(N.m) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 37 | φ20k6 | 82 | φ120/160 | 0.18-0.75 | 10.27-165.71 | 90 | 7 |
| 47 | φ25k6 | 100 | φ160 | 0.18-1.50 | 11.46-244.74 | 170 | 10 |
| 57 | φ30k6 | 180 | φ200 | 0.18-3.0 | 10.78-196.21 | 300 | 14 |
| 67 | φ35k6 | 140 | φ200 | 0.25-5.50 | 11.55-227.20 | 520 | 26 |
| 77 | φ45k6 | 180 | φ250 | 0.55-7.50 | 9.96-241.09 | 1270 | 50 |
| 87 | φ60m6 | 225 | φ350 | 0.75-15.0 | 11.83-223.26 | 2280 | 100 |
| 97 | φ70m6 | 280 | φ450 | 1.50-22.0 | 12.5-230.48 | 4000 | 170 |
