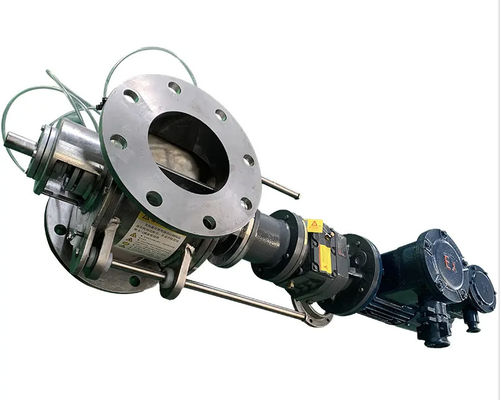

Hygienic Stainless Steel Rotary Airlock Valve For Dust Collector OEM

Products

Rotary Airlock Valve

anna@rotary-reducer.com

+86-15300538565

Contact Now

Hygienic Stainless Steel Rotary Airlock Valve For Dust Collector OEM

MOQ:	1
Price:	USD
Standard Packaging:	standard export wooden case
Delivery Period:	5-10 days
Payment Method:	T/T
Supply Capacity:	30pcs/month

Detail Information

Product Description

Detail Information

Place of Origin

Shanghai

Brand Name

Fanbao

Power Source:

Electric Power

Work Temperature:

Original

Number Of Vanes:

Sample:

Yes

Structure:

Regulating

Work Pressure:

Original

Motor Power:

0.55-5 Kw

Size:

6 Inches

Motor Type:

Hardenend Helical Gear Motor

Color:

Brown

Clearance:

0.08-0.12mm

Output:

1-200 Tons/hr

Item:

Heavy Duty Discharge

Motor Drive:

Chain Drive

Port Size:

Standard

Highlight:

OEM Rotary Airlock Valve

hygienic Rotary Airlock Valve

OEM rotary airlock valve for dust collector

Product Description

Hygienic Stainless Steel Rotary Airlock Valve For Dust Collector OEM

Product Specifications

Attribute	Value
Power Source	Electric Power
Work Temperature	Original
Number Of Vanes	8
Sample	Yes
Structure	Regulating
Work Pressure	Original
Motor Power	0.55-5 kw
Size	6 inches
Motor Type	Hardened helical gear motor
Color	Brown
Clearance	0.08-0.12mm
Output	1-200 tons/hr
Item	Heavy duty discharge
Motor Drive	Chain Drive
Port Size	Standard

Product Overview

The easy-slide rotor support is an optional addition designed for all sizes of de-mountable convey and drop-through rotary valves used in hygienic and sanitary environments. This accessory provides a secure platform for the rotor and non-drive end-plate when removed from the valve bore, ensuring proper alignment for precise reassembly.

Key Features

Housing with material inlet at top and discharge port at bottom
End covers connected to rotating shaft via bearings
Limit ring attached to rotating shaft and blade end
Material baffle connected to limit ring exterior
Motor connected to reducer driving rotating shaft
Connecting flanges at feed port and discharge port
Air-tight structure between rotating shaft and end covers
Integrated oil-water separator in air circuit
Protruding frames on end covers with internal bearings

Design Advantages

This pull rod quick-release cleaning type discharge valve features end covers connected to the shell via screws on both sides, with the impeller structure linked through bearings. During disassembly, one end cover can be completely removed, allowing for swift shell removal and easy cleaning of the impeller structure.

The innovative baffle plate structure prevents direct material contact with the shell's side walls, reducing debris entry into the connection gap between the rotating shaft and bearing. This design extends cleaning cycles, minimizes required maintenance, and significantly improves user convenience.

Working Principle

When in operation, material enters through the feed inlet connected to the upper feeding pipe. The material falls by gravity, filling gaps between the blades. As the rotating shaft turns, it drives the blades to rotate the material. When the opening between two adjacent blades faces downward, the material discharges by gravity through the outlet connected to the lower feeding pipe.

For cleaning, the end cover can be completely removed, allowing the housing to be pulled outward for easy disassembly and thorough cleaning.
