Heavy Duty Dust Collector Rotary Feeder Valve Air Lock Carbon Steel
Detail Information
Blade:
8
Transport Of Materials:
Fly Ash
Item:
Heavy Duty Discharge
Flange Size:
150
Volume:
68L
Structure:
Regulating
Motor:
SEW Or Siemens Or Others
Port Size:
Standard
Temperature Of Media:
Normal Temperature
Model:
RV-D.V-50L
Design:
Drop-through
Rotating Speed:
24R/MIN
Height:
220-900mm
Size:
6 Inches
Power:
Electric Rotary Valve
Highlight:
rotary feeder valve Dust Collector
,Carbon Steel rotary feeder valve
,heavy duty dust collector air lock
Product Description

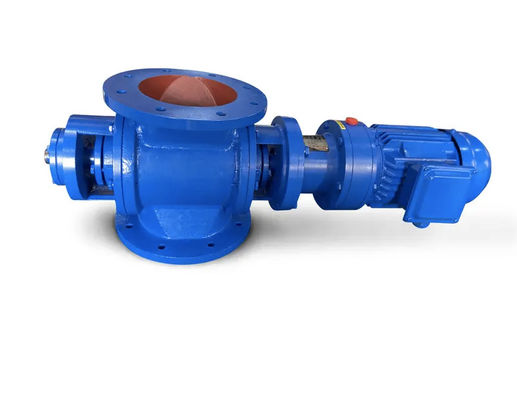

Heavy Duty Dust Collector Rotary Feeder Valve Air Lock Carbon Steel
Product Overview
The Dust Collector Series rotary airlock valve is a cost-effective solution designed for use beneath dust collectors, cyclones, and hoppers. This heavy-duty discharge valve combines standard features typically found in premium models with exceptional value for dust collection systems.
Key Specifications
| Model | RV-D.V-50L |
| Blade Count | 8 |
| Material Transport | Fly ash |
| Flange Size | 150 |
| Volume | 68L |
| Rotating Speed | 24R/MIN |
| Power | Electric rotary valve |
| Motor Options | SEW, Siemens, or others |
Structural Design
The rotary valve consists of:
- Motor with gear reducer (Y) or cycloid reducer (X)
- Turbine reducer system
- Valve body with multiple flange options (square, round, rectangular)
- Drop-through design for efficient material flow
Technical Features
- Planetary rotation principle with coaxial input/output for compact design
- Durable construction using ductile iron and bearing steel components
- Separate bearing/gearbox compartments to protect from high-temperature dust
- Enhanced sealing in end covers prevents dust leakage
- High overload capacity suitable for frequent starts and reversals
- Precision gap between valve body and impeller rotor for optimal air tightness
Technical Specifications
| Type | Volume/Rotation | Power (KW) | Speed (R/min) | Temperature (°C) | Weight (Kg) |
|---|---|---|---|---|---|
| 2type | 2L/T | 0.75 | 24 | 280 | 75 |
| 4type | 4L/T | 0.75 | 24 | 280 | 105 |
| 6type | 6L/T | 0.75 | 24 | 280 | 110 |
| 8type | 8L/T | 0.75 | 24 | 280 | 125 |
| 10type | 10L/T | 1.1 | 24 | 280 | 135 |
