Abrasion Resistant Dust Collector Rotary Valve Airlock High Temperature
| MOQ: | 2 |
| Price: | USD |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 7-10 work days |
| Payment Method: | T/T |
Detail Information
Brand Name
FANBAO
Standard Or Nonstandard:
Standard
Transport Of Materials:
Metal Particles
Rotor Speed:
20-48rpm
Drive Type:
Chain Drive
Rotate Speed:
25 R / Min
Color:
Customer's Request
Work Pressure:
Original
Inlet Type:
Round
Voltage:
380/400/415/460 V
Flange Size:
100
Payment Term:
D/P, T/T, L/C
Motor Drive:
Chain Drive
Power Source:
Electric Power
Size:
6 Inch
Work Temperature:
Original
Highlight:
Abrasion Resistant dust collector rotary valve
,High Temperature dust collector rotary valve
,high temperature rotary valve Airlock
Product Description

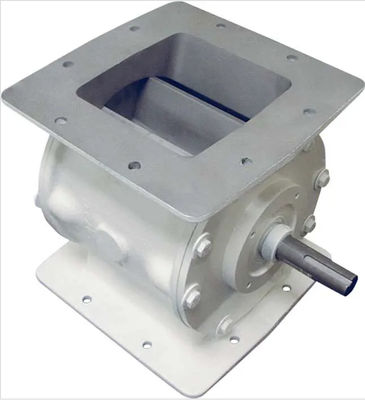

Abrasion Resistant Dust Collector Rotary Valve Airlock High Temperature
Product Specifications
| Attribute | Value |
|---|---|
| Standard Or Nonstandard | Standard |
| Transport Of Materials | Metal particles |
| Rotor Speed | 20-48rpm |
| Drive Type | Chain Drive |
| Rotate Speed | 25 r / min |
| Color | Customer's Request |
| Work Pressure | Original |
| Inlet Type | Round |
| Voltage | 380/400/415/460 V |
| Flange Size | 100 |
| Payment Term | D/P, T/T, L/C |
| Motor Drive | Chain Drive |
| Power Source | Electric Power |
| Size | 6 inch |
| Work Temperature | Original |
Product Description
Our highly durable abrasion-resistant rotary airlock valves offer a lasting solution for applications where rotary valves typically wear out due to abrasion. These specialized valves are designed to endure even the harshest abrasive and corrosive environments.
The ceramic-lined cast iron housing delivers superior performance compared to airlocks made solely of cast iron, stainless steel, or Ni-hard materials. The thick layers of alumina ceramic coating maintain precision tolerances and ensure prolonged wear life.
Key Features
- Oversized mounting flange for secure installation
- Heavy-duty outboard bearings for enhanced durability
- Self-adjusting packing glands for optimal performance
- Pre-drilled end plates for efficient air purge
- Handles pressure differentials up to +/- 12 PSI
- Operates at temperatures up to 300°F
Interchangeable Components
Our rotary airlock feeders offer various configurations with interchangeable parts:
End Plates Options
- Flange bearing and lip seals
- Packing gland, separate stuffing box and cartridge bearing
- Packing gland, integral stuffing box and cartridge bearing
Rotor Options
- Type I open end
- Type II closed end with adjustable tips
- Type I closed end
Casing Options
- Without inspection panel
- With inspection panel
- Side inlet
Technical Specifications
Available in cast iron or stainless steel construction with eight-blade rotors in sizes: 6, 8, 10, 12, 14, and 16 inches.
Ceramic options include:
- Ceramic-lined end plates
- Ceramic-lined rotors
- Tungsten carbide throat
