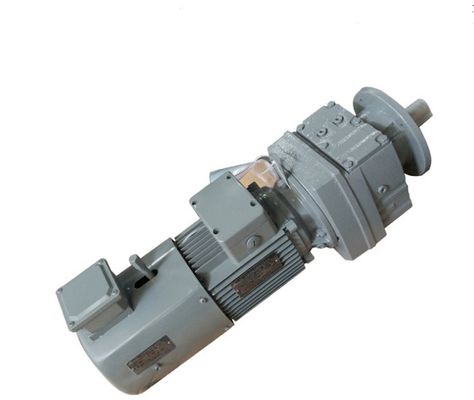

RF Vertical Flange Mounted Bevel Coaxial Helical Gearbox For Drilling Machines

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

Gearing Arrangement:

Helical

Output Torque:

3.2-18000N.m

Input Speed:

600~1500rpm

Output Speed:

14-280rpm

Weight (KG):

50kg

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

7.5~100

Highlight:

Vertical coaxial helical gearbox

Flange Mounted coaxial helical gearbox

Coaxial helical bevel gearbox

Product Description

RF Vertical Shaft Flange-Mounted Helical Gearbox For Drilling Machines

Description:

R series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.
It has beenwidely used in metallurgy, mining, petroleum, chemical industry, ship, light industry, food, textile, printing and dyeing.

Specification :

Size	27	37	47	57	67	77	87	97	107	137	147	167
Structure	DR DRF DRX DRXF
Input power rating (KW)	0.18-0.75	0.18-3.0	0.18-5.5	0.18-7.5	0.18-7.5	0.18-11	0.55-22	0.55-30	2.2-45	5.5-55	11-90	181-160

Ratio	1.6-135.09	1.6-134.82	3.83-176.88	1.3-186.89	1.4-199.81	1.42-195.24	1.39-246.54	1.42-289.60	1.44-245.5	1.56-223.34	5.00-163.46	1.63-196.41

Maximun torque (N.m)	130	200	400	600	820	1550	3000	4300	8000	13000	18000	50000

Weight(KG)	8	14	23	39	70	100	150	250	380	610

SIZE	ShaftDia Solid(mm)	Center Height	OutputFlange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(n.m)	Weight (kgs)
17	φ20k6	75	φ120/140	0.18-0.75	3.83-74.84	85	4
27	φ25k6	90	φ120/140	0.18-3.00	3.37-135.09	130	5.5
37	φ25k6	90	φ160/200	0.18-3.00	3.33-134.82	200	8.5
47	φ30k6	115	φ160/200	0.18-5.50	3.83-176.88	300	10
57	φ35k6	115	φ200/250	0.18-7.50	4.39-186.89	450	18
67	035k6	130	φ200/250	0.18-7.50	4.29-199.81	600	25
77	φ40k6	140	0250/300	0.18-11.00	5.21-195.24	820	36
87	φ50k6	180	φ300/350	0.55-22.00	5.36-246.54	1550	63
97	φ60m6	225	φ350/450	0.55-30.00	4.49-289.74	3000	101
107	φ70m6	250	0350/450	2.20-45.00	5.06-249.16	4300	153
137	φ90m6	315	φ450/550	5.50-55.00	5.15-222.60	8000	220
147	0110m6	335	0450/550	11.00-90.00	5.0-16.31	13000	400
167	φ120m6	425	φ550/660	11.00-160.00	10.24-229.71	18000	700

Features :

Our R series helical gear reducers are based on the building block design, so its convenientfor them to fit all types of motors or to connect with other power input, and its possiblefor different types of machines to combine or connect.
1. Compact construction, saves space for mounting, large load-bearing capacity and long life.
2. High transmission efficiency and low noise. A single machine can reach a transmission efficiency as much as 96%.
3. Precise division of transmission ratio with a wide range. The combination of machines can produce a larger transmission ratio at a low output rotational speed.
4. Installation: Foot-mounted, B5/B14 flange-mounted, input shaft, hollow output shaft, etc.
