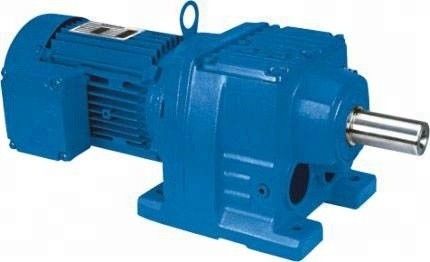

20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque
  • name
  • name
  • name
  • name
  • name

20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
R
Gearing Arrangement:
Helical
Output Torque:
3.2-18000N.m
Input Speed:
600~1500rpm
Output Speed:
14-280rpm
Weight (KG):
50kg
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
7.5~100
Mounting Position:
Foot-mounted
Installation Form:
Foot-mounted, Flange-mounted, Torgue Arm
Highlight:

Helical Gear Reducer Inliner

,

20CrMnTi Helical Gear Reducer

,

20CrMnTi helical bevel reducer

Product Description
20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque
Product Specifications
Gearing Arrangement Helical
Output Torque 3.2-18000N.m
Input Speed 600~1500rpm
Output Speed 14-280rpm
Weight 50kg
Warranty 1 year
Color Customer Requirement
Ratio 7.5~100
Mounting Position Foot-mounted
Installation Form Foot-mounted, flange-mounted, torque arm
Product Overview

The R Series of reducers leads the industrial gearbox market with its serialized and modular design. These high torque helical inliner speed gear reducers offer extensive adaptability with multiple motor combinations and installation options, featuring finely graded structures and transmission ratios to meet diverse operational requirements.

Technical Specifications
Gear material: 20CrMnTi alloy steel
Surface hardness of gears: HRC58°~62
Gear core hardness: HRC33~40
Input/Output shaft material: 42CrMo alloy steel
Input/Output shaft hardness: HRC25~30
Machining precision of gears: Accurate grinding, 6~5 Grade
Lubricating oil: GB L-CKC220-460, Shell Omala220-460
Heat treatment: Tempering, cementing, quenching
Efficiency: 94%~96% (depends on transmission stage)
Noise (MAX): 60~68dB
Temperature rise (MAX): 40°C
Vibration: ≤20μm
Backlash: ≤20 Arcmin
Available Models

R17, R27, R37, R47, R57, R67, R77, R87, R97, R107, R137, R147, R167
RF17, RF27, RF37, RF47, RF57, RF67, RF77, RF87, RF97, RF107, RF137, RF147, RF167
RX37, RX57, RX67, RX77, RX87, RX97, RX107, RX127, RX157
RXF37, RXF57, RXF67, RXF77, RXF87, RXF97, RXF107, RXF127, RXF157
RS27, RS37, RS47, RS57, RS67, RS77, RS87, RS97, RS107, RS137, RS147, RS167

Key Features
Versatile Design

Serialized and modular design offers extensive adaptability with multiple motor combinations and installation options to meet diverse operational needs.

Advanced Technology

Manufactured to international technical standards with high technological sophistication.

Compact & Durable

Space-efficient design with high overload capacity, supporting power outputs up to 132KW.

High Efficiency

Energy efficient operation with performance ratings of 95% or higher.

Quiet Operation

Minimal vibration and low noise levels for energy-efficient performance.

Premium Materials

Constructed from high-quality forged steel and rigid cast iron with high-frequency heat treated gear surfaces.

Precision Engineering

Precisely processed components ensure optimal shaft parallelism and bearing positioning for reliable performance.

Product Images
20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque 0 20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque 1 20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque 2 20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque 3 20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque 4 20CrMnTi Bevel Helical Gear Reducer Inliner Motor High Torque 5
