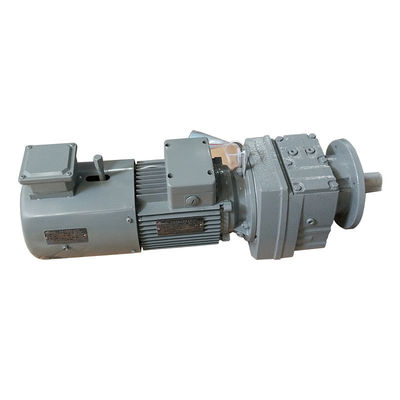

High Speed Helical Bevel Gearmotor Gearbox Reducer 600rpm-1500rpm
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 8-15work days |
| Payment Method: | T/T |
| Supply Capacity: | 100sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
R
Gearing Arrangement:
Helical
Output Torque:
3.2-18000N.m
Input Speed:
600~1500rpm
Output Speed:
14-280rpm
Weight (KG):
50kg
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
7.5~100
Mounting Position:
Foot-mounted
Installation Form:
Foot-mounted, Flange-mounted, Torgue Arm
Highlight:
High Speed helical bevel gearmotor
,600rpm helical bevel gearmotor
,1500rpm helical gearbox
Product Description
High Speed Helical Bevel Gearmotor Gearbox Reducer 600rpm-1500rpm
Product Specifications
| Attribute | Value |
|---|---|
| Gearing Arrangement | Helical |
| Output Torque | 3.2-18000N.m |
| Input Speed | 600~1500rpm |
| Output Speed | 14-280rpm |
| Weight | 50kg |
| Warranty | 1 year |
| Color | Customer Requirement |
| Ratio | 7.5~100 |
| Mounting Position | Foot-mounted |
| Installation Form | Foot-mounted, Flange-mounted, Torque arm |
Product Description
High Torque R Series Helical Inline Speed Gear Reducers
The R series reducer operates on the principle of reducing motor speed while improving output torque. It utilizes advanced gear meshing technology with a novel structural design for the retarding mechanism. These reducers are widely used in various industries including metallurgy, mining, petroleum, chemical processing, shipbuilding, light industry, food processing, textile manufacturing, and printing/dyeing.
Available Models
- R17, R27, R37, R47, R57, R67, R77, R87, R97, R107, R137, R147, R167
- RF17, RF27, RF37, RF47, RF57, RF67, RF77, RF87, RF97, RF107, RF137, RF147, RF167
- RX37, RX57, RX67, RX77, RX87, RX97, RX107, RX127, RX157
- RXF37, RXF57, RXF67, RXF77, RXF87, RXF97, RXF107, RXF127, RXF157
- RS27, RS37, RS47, RS57, RS67, RS77, RS87, RS97, RS107, RS137, RS147, RS167
- And various combination models
Technical Specifications
| Gear Material | 20CrMnTi alloy steel |
|---|---|
| Surface Hardness of Gears | HRC58°~62 |
| Gear Core Hardness | HRC33~40 |
| Input/Output Shaft Material | 42CrMo alloy steel |
| Input/Output Shaft Hardness | HRC25~30 |
| Machining Precision of Gears | Accurate grinding, 6~5 Grade |
| Lubricating Oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat Treatment | Tempering, cementing, quenching, etc. |
| Efficiency | 94%~96% (depends on transmission stage) |
| Noise (MAX) | 60~68dB |
| Temperature Rise (MAX) | 40°C |
| Oil Temperature Rise (MAX) | 50°C |
| Vibration | ≤20μm |
| Backlash | ≤20 Arcmin |
| Brand of Bearings | China top brand bearing, or other brands requested |
| Brand of Oil Seal | NAK-Taiwan or other brands requested |
Detailed Specifications
| SIZE | Shaft Dia. Solid (mm) | Center Height | Output Flange Dia. (mm) | Power (kw) | Ratio | Permissible Torque (n.m) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 17 | φ20k6 | 75 | φ120/140 | 0.18-0.75 | 3.83-74.84 | 85 | 4 |
| 27 | φ25k6 | 90 | φ120/140 | 0.18-3.00 | 3.37-135.09 | 130 | 5.5 |
| 37 | φ25k6 | 90 | φ160/200 | 0.18-3.00 | 3.33-134.82 | 200 | 8.5 |
| 47 | φ30k6 | 115 | φ160/200 | 0.18-5.50 | 3.83-176.88 | 300 | 10 |
| 57 | φ35k6 | 115 | φ200/250 | 0.18-7.50 | 4.39-186.89 | 450 | 18 |
| 67 | φ35k6 | 130 | φ200/250 | 0.18-7.50 | 4.29-199.81 | 600 | 25 |
| 77 | φ40k6 | 140 | φ250/300 | 0.18-11.00 | 5.21-195.24 | 820 | 36 |
| 87 | φ50k6 | 180 | φ300/350 | 0.55-22.00 | 5.36-246.54 | 1550 | 63 |
| 97 | φ60m6 | 225 | φ350/450 | 0.55-30.00 | 4.49-289.74 | 3000 | 101 |
| 107 | φ70m6 | 250 | φ350/450 | 2.20-45.00 | 5.06-249.16 | 4300 | 153 |
| 137 | φ90m6 | 315 | φ450/550 | 5.50-55.00 | 5.15-222.60 | 8000 | 220 |
| 147 | φ110m6 | 335 | φ450/550 | 11.00-90.00 | 5.0-16.31 | 13000 | 400 |
| 167 | φ120m6 | 425 | φ550/660 | 11.00-160.00 | 10.24-229.71 | 18000 | 700 |
