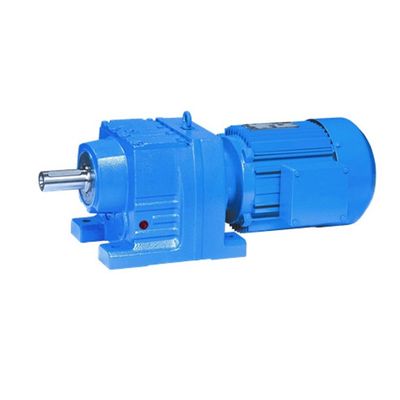

Vertical Shaft Mounted Inline Helical Gear Motor For Transmission Reducer

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

Gearing Arrangement:

Helical

Output Torque:

3.2-18000N.m

Input Speed:

600~1500rpm

Output Speed:

14-280rpm

Weight (KG):

50kg

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

7.5~100

Mounting Position:

Foot-mounted

Installation Form:

Foot-mounted, Flange-mounted, Torgue Arm

Highlight:

helical gear motor Reducer

Shaft Mounted helical gear motor

Transmission inline helical gear reducer

Product Description

High torque Vertical shaft mounted RF type gearbox reducer gear box with motor for Transmission Reducer

Description:

the R gearbox reducer with motor is Small size, light weight, large transmission torque, superior performance, stable operation, low noise, durable, can be installed
in a variety of ways, can be matched with different types of motors, a wide range of applications. Optional vertical flange
installation, commonly used in mixing equipment.

Specification:

Series:	R Series Helical Gear Reducer
Specifications:	17,27,37,47,57,67,77,87,97,107,137,147,167,177
Transmission Ratio:	1.3~289.74
Input Power (KW):	0.12~160
Output Torque (N.m):	3.5~23200

Feature :

1. RF gearbox reducer with motor can achieve a high reduction ratio of 1:87 and a high-efficiency single-stage transmission of more than 90%. If multi-stage transmission is used, the reduction ratio is larger.

2. The reduction ratio of the first-stage transmission is 9~87, the reduction ratio of the double-stage transmission is 121~5133, the multi-stage combination can reach tens of thousands, and the pin-tooth meshing system has rolling friction, and the meshing surface has no relative sliding, so the first-stage deceleration The efficiency is 94%.

3. Compact structure and small volume Due to the planetary transmission principle, the input shaft and the output shaft are on the same axis line, so that the model can obtain the smallest size possible.

Application :

R series process :

Packing and shipping way :
