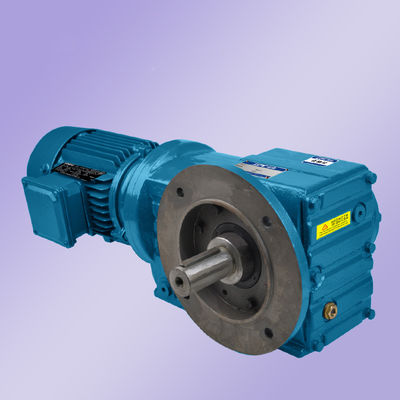

Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw
  • name
  • name
  • name

Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
K KA KF KAF
Gearing Arrangement:
Helical
Output Torque:
50000N.m
Input Speed:
600~1800rpm
Output Speed:
14-280rpm
Weight (KG):
80kg
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
7.5~100
Size:
K KA KF KAF KAZ KAT KAB
Efficiency:
Over 95%
Gear Material:
20CrMnTi
Housing Material:
HT250 High-strength Cast Iron
Input Ways:
Motor Input, AM (IEC) Flange Input, And Shaft Input
Output Way:
Solid Shaft Output Or Hollow Shaft Output
Highlight:

parallel single reduction helical gearbox

,

Worm single reduction helical gearbox

,

Worm parallel helical gears

Product Description
Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw
Product Specifications
Attribute Value
Gearing Arrangement Helical
Output Torque 50000N.m
Input Speed 600~1800rpm
Output Speed 14-280rpm
Weight 80kg
Warranty 1 year
Color Customer Requirement
Ratio 7.5~100
Size K KA KF KAF KAZ KAT KAB
Efficiency Over 95%
Gear material 20CrMnTi
Housing material HT250 high-strength cast iron
Input ways Motor input, AM (IEC) flange input, and shaft input
Output way Solid shaft output or hollow shaft output
Product Description

0.55-15kw K Series Helical Worm Geared Motor Helical Gear Box Speed Reducers

K series gear reducer, combined with international technical requirements of manufacturing, features high technology content. It offers space-saving design, reliable and durable construction capable of withstanding high overload capacity, with power up to 132KW. The reducer boasts low energy consumption and superior performance, with efficiency reaching 95% or more.

KA Series Hollow Shaft Helical Bevel Gearbox Parameters
Size Model Specifications
37 47 57 67 77 87 97 107 127 157 167 187
Structure K KA KF KAF KAZ KAT KAB
Input power (kW) 0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 3-45 7.5-90 11-160 00 18.5
Ratio 5.36-106.38 5.81-131.87 6.57-145.14 7.14-144.79 7.24-192.18 7.19-197.37 8.95-176.05 8.74-141.46 8.68-146.07 12.65-150.41 17.28-163.91 17.27-180.78
Permissible torque (N.m) 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Product Images
Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 0 Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 1 Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 2 Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 3 Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 4 Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 5 Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 6
Applications
Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 7 Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 8
Manufacturing Process
Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 9
Packaging & Shipping
Parallel Single Reduction Helical Gearbox Worm Geared Motor 0.55kw-15kw 10
