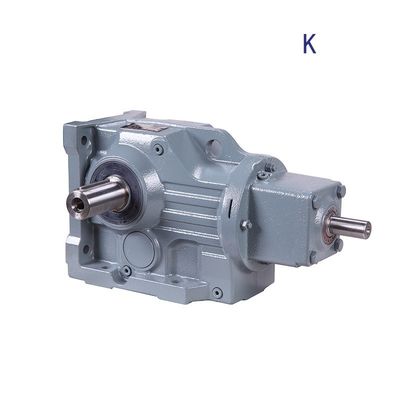

HT250 High Strength Worm Bevel Inline Helical Gear Box Reducer 600rpm-1800rpm

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

K KA KF KAF

Gearing Arrangement:

Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series Gearbox Reducer With AC Motor 380V

Output Torque:

50000N.m

Input Speed:

600~1800rpm

Output Speed:

280 Rpm

Weight (KG):

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

5~180

Size:

K KA KF KAF KAZ KAT KAB

Efficiency:

Over 95%

Gear Material:

20CrMnTi

Housing Material:

HT250 High-strength Cast Iron

Input Ways:

Motor Input, AM (IEC) Flange Input, And Shaft Input

Output Way:

Solid Shaft Output Or Hollow Shaft Output

Motor Type:

AC Motor

Highlight:

HT250 inline helical gear box

600rpm inline helical gear box

1800rpm helical bevel gear

Product Description

HT250 High Strength Worm Bevel Inline Helical Gear Box Reducer 600rpm-1800rpm

Product Specifications

Attribute	Value
Gearing Arrangement	Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque	50000N.m
Input Speed	600~1800rpm
Output Speed	280 rpm
Weight	60kg
Warranty	1 year
Color	Customer Requirement
Ratio	5~180
Size	K KA KF KAF KAZ KAT KAB
Efficiency	Over 95%
Gear material	20CrMnTi
Housing material	HT250 high-strength cast iron
Input ways	Motor input, AM (IEC) flange input, and shaft input
Output way	Solid shaft output or hollow shaft output
Motor type	AC motor

Product Features

90 Degree Ratio 60:1 With Motor K Series Helical Worm Gear Reducer

Modular Design: Easily connects with different motor types and power inputs for flexible solutions
Wide Ratio Range: Offers closely divided ratios with extremely low output speeds possible through combined units
Versatile Mounting: No strict limitations to mounting arrangement
High Strength Construction: HT250 cast iron housing with gas carburized gears for maximum load capacity
Extended Service Life: Properly maintained components can last over 25,000 hours
Low Noise Operation: Precision machining and assembly ensures quiet performance
High Efficiency: Up to 95% efficiency for gear units, 89% for worm gear units
Superior Load Capacity: Large radial loading ability with axial load capacity up to 5% of radial load

Maintenance Guidelines

Proper installation and maintenance are critical for optimal performance and longevity:

Install on flat surfaces with good ventilation conditions
Regularly check and replace lubricating oil
Monitor installation base, seals, and transmission shafts
Maintain housing and other critical components
Use proper cleaning procedures without altering hardware or adding cleaning agents

Technical Specifications

K Series Helical Bevel Gearbox Connection Code and Form

Size	37	47	57	67	77	87	97	107	127	157	167	187
Input Power Rating (kW)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-1.1	0.75-22	1.1-30	3-45	7.5-90	11-160	11-200	18.5-200
Ratio	5.36~106.38	5.81≈131.87	6.57~145.15	7.14~144.79	7.22-192.18	7.19~192.27	8.95-175.47	8.74-141.93	8.68-146.07	12.66~150.03	17.35~164.44	17.97-178.37
Torque (Nm)	200	400	600	820	1550	2700	4300	8000	13000	18000	32000	50000
Weight (kg)	11	20	27	33	57	85	130	250	380	610	1015	1700

Weights are mean values for reference only. Maximum torque represents the highest value for the specified size across different ratios.

Available Models

K37 K47 K57 K67 K77 K87 K97 K107 K127 K157 K167 K187 KA37 KA47 KA57 KA67 KA77 KA87 KA97 KA107 KA127 KA157 KA167 KA187 KF37 KF47 KF57 KF67 KF77 KF87 KF97 KF107 KF127 KF157 KF167 KF187 KAF37 KAF47 KAF57 KAF67 KAF77 KAF87 KAF97 KAF107 KAF127 KAF157 KAF167 KAF187 KAZ37 KAZ47 KAZ57 KAZ67 KAZ77 KAZ87 KAZ97 KAZ107 KAZ127 KAZ157 KAZ167 KAZ187 KAT37 KAT47 KAT57 KAT67 KAT77 KAT87 KAT97 KAT107 KAT127 KAT157 KAT167 KAT187 KAB37 KAB47 KAB57 KAB67 KAB77 KAB87 KAB97 KAB107 KAB127 KAB157 KAB167 KAB187

Product Images

Mounting Position and Motor Terminal Box

Application Examples

Manufacturing Process
