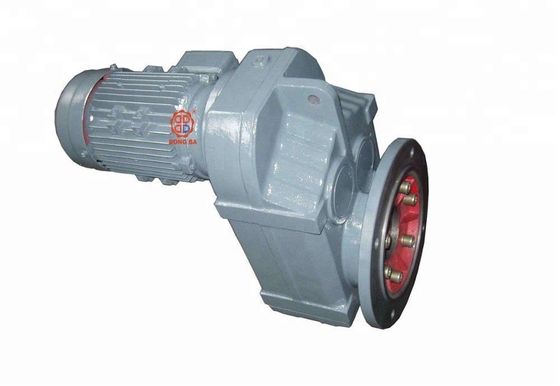

Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
  • name
  • name
  • name
  • name

Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Output Torque:
10.6-952000NM
Input Speed:
750-1500rpm
Output Speed:
14-280rpm
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
3.77~276.77
Efficiency:
94%~98%(depends On The Transmission Stage)
Mounting Position:
Flange, Hollow Shaft, Solid Shaft
Certificate:
ISO9001. CE
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material:
Gear: 20CrMnTi Housing: HT250 High Strength Cast Iron
Highlight:

Parallel Axis speed multiplier gearbox

,

4KW speed multiplier gearbox

,

Helical reduction gear motor

Product Description

Helical Gearbox Reducer F77 Series Parallel Axis Helical Gear Reducer with 4KW motor

Description :

1. Modular design, compact structure. Extra-slim parallel shaft helical gearmotors are the perfect solution when space is limited
2. F series parallel shaft helical gearmotors are typically used in conveyors and materials processing applications
3. Multi-stage(2 or 3 stages) gear units for low output speed
4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
5. Can be combined with other types of gearboxes (Such as R Series, UDL Series)
6. Optional mounting options (foot-mounted, flange-mounted, shaft-mounted

7. Housing: Cast Iron
8. Gears: Hardened Helical Gears
9 Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
10 . Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
11. Output Configurations:
Solid Shaft Output
Hollow Shaft Output



Apart of type specification :



SIZE 37 47 57 67 77 87 97 107 127 157
DF DFA DFF DKAZ DFAF DFAZ
INPUT POWER RATING(KW) 0.18-0.30 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-260
RATIO 3.81-128.51 5.06-189.39 5.18-199.70 4.21-228.99 4.20-271.92 4.12-270.64 4.68-270.64 6.20-255.25 4.63-172.33 12.07-270.18
MAX TORQUE(N.m) 200 400 600 820 1500 3000 4300 7840 12000 18000
WEIGHT(KG) 13 18 34 55 90 150 260 402 700 950




Application :

Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.


Mounting position and Position of the motor terminal box :


Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 0
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 1
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 2
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 3
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 4
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 5










Why choose us :



Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 6Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 7Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 8


F series process :

Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 9
Packing and shipping way :
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW 10
