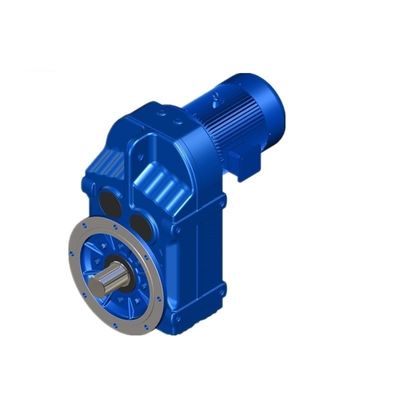

90 Degree Industrial Transmission Parallel Helical Gears Box Speed Reducer

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157

Output Torque:

10.6-952000NM

Input Speed:

750-1500rpm

Output Speed:

14-280rpm

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

3.77~276.77

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Flange, Hollow Shaft, Solid Shaft

Certificate:

ISO9001. CE

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company

Material:

Gear: 20CrMnTi Housing: HT250 High Strength Cast Iron

Product Name:

High Torque Industrial Transmission F Series Reduction Gear Box Custom Gearbox Speed Reducer

Highlight:

Industrial parallel helical gears

parallel helical gears Speed Reducer

90 degree helical gears Reducer

Product Description

High Torque Industrial Transmission F Series Reduction Gear Box Custom Gearbox Speed Reducer

Description :

The F Series reducer is meticulously crafted to meet stringent international technical standards, showcasing a blend of advanced scientific sophistication. Designed for optimal space utilization, this gear reducer offers reliability, durability, and a high overload capacity, supporting power outputs of 90KW or more.

Featuring a parallel shaft helical design, the F Series gear reducer excels in energy efficiency, boasting over 95% efficiency. Its compact size, lightweight construction, and impressive transfer torque make it a top choice for various installation scenarios. With multi-stage gear units for low output speeds, this reducer can be seamlessly combined with other series like R, K, and S for enhanced torque and reduced speed.

The F Series Gear Reducer's standardized and modularized approach allows for versatile mounting options such as foot-mounted, flange-mounted, and shaft-mounted configurations, ensuring adaptability to diverse setups

Apart of type specification :

Size	Shaft Dia. (mm)		Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque (n.m)	Weight (kgs)
Size	Solid Hallow		Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque (n.m)	Weight (kgs)
37	φ25k6	φ30h7	76	φ110/160	0.18-3.0	3.81-128.51	200	13
47	φ30k6	φ35h7	77	φ120/200	0.18-3.0	5.06-189.39	400	18
57	φ35k6	φ40h7	93	φ155/250	0.18-5.50	5.18-199.70	600	34
67	φ40k6	φ40h7	97	φ155/250	0.18-5.50	4.21-228.91	820	55
77	φ50k6	φ50h7	121	φ170/300	0.37-11.0	4.30-281.71	1500	90
87	φ60m6	φ60h7	152	φ215/350	0.75-22.0	4.12-270.68	3000	150
97	φ70m6	φ70h7	178	φ260/450	1.10-30.0	4.68-280.76	4300	260
107	φ90m6	φ90h7	200	φ304/450	2.20-45.0	6.20-254.40	7840	402
127	φ110m5	φ100h7	236	φ350/550	7.5-90.0	4.63-172.17	12000	700
157	φ120m6	φ120h7	286	φ400/660	11.0-200.0	11.92-267.43	18000	950

Application :

Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

Mounting position and Position of the motor terminal box :

Why choose us :

90 Degree Industrial Transmission Parallel Helical Gears Box Speed Reducer 6

F series process :

Packing and shipping way :
