SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

CE. ISO9001

Model Number

S/sa/saf/saz/sf37

Output Torque:

10-4890(N.M)

Input Speed:

1450rpm

Output Speed:

0.12-397(rpm)

Warranty:

1 Year

Color:

Customer Requirement

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Foot,flange,torque,arm,hollow/s

Gearing Arrangement:

Highlight:

SF37 helical bevel speed reducer

SAT37 helical bevel speed reducer

inline motor gearbox Reducer

Product Description

SF37 SA37 SAF37 SAT37 Helical Bevel Speed Reducer Inline Motor Gearbox

Product Specifications

Attribute	Value
Output Torque	10-4890(N.M)
Input Speed	1450rpm
Output Speed	0.12-397(rpm)
Warranty	1 year
Color	Customer Requirement
Efficiency	94%~98%(depends on the transmission stage)
Mounting Position	Foot, flange, torque, arm, hollow/s
Gearing Arrangement	Worm

Product Overview

The S37 SF37 SA37 SAF37 SAT37 series features a 90-degree helical worm gear speed reducer motor that combines helical gear and worm gear technology to enhance torque and efficiency. This S series gearbox reducer offers complete specifications, wide speed range, excellent versatility, and adapts to various installation methods while ensuring performance, safety, reliability, and long service life.

Key Advantages

Concave and convex heat dissipation surface for strong vibration absorption, low temperature rise, and low noise
Excellent sealing performance with strong environmental adaptability
High transmission precision, ideal for frequent-start applications
Compatible with various reducer types and motor drives
High wear-resistant materials with special heat treatment for key components
Precision machining ensures stable transmission, compact size, and long lifespan
Electromechanical integration capability with various motor types

Technical Specifications

Parameter	Value
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62°
Gear core hardness	HRC33~40
Input/Output shaft material	42CrMo alloy steel
Input/Output shaft hardness	HRC25~30
Machining precision of gears	Accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	Tempering, cementing, quenching, etc.
Efficiency	94%~96%(depends on transmission stage)
Noise (MAX)	60~68dB
Temp. rise (MAX)	40℃
Temp. rise (Oil)(MAX)	50℃
Vibration	≤20μm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, or other brands requested

Size and Performance Data

SIZE	Shaft Dia. (mm)	Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
37	φ20k6	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6	280	φ450	1.50-22.0	12.5-230.48	4000	170

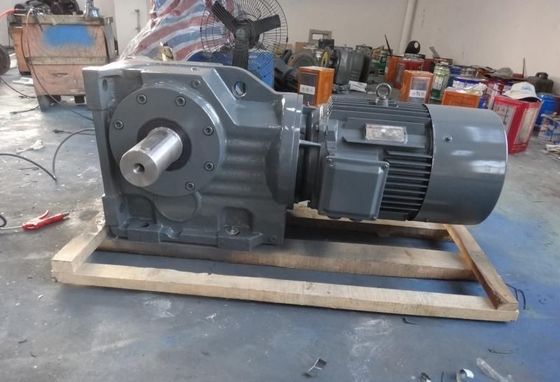

Product Images

Manufacturing Process

Packaging & Shipping
