Hollow Shaft Flanged Helical Gear Reducer Worm Gearbox for Intelligent Transmission
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 8-15work days |
| Payment Method: | T/T |
| Supply Capacity: | 100sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE. ISO9001
Model Number
S/sa/saf/saz/sf37
Output Torque:
10-4890(N.M)
Input Speed:
1450rpm
Output Speed:
0.12-397(rpm)
Warranty:
1 Year
Color:
Customer Requirement
Efficiency:
94%~98%(depends On The Transmission Stage)
Mounting Position:
Foot,flange,torque,arm,hollow/s
Gearing Arrangement:
Worm
Lubricating Oil:
GB L-CKC220-460,Shell Omala220-460
Highlight:
Flanged Helical Gear Reducer
,Intelligent Transmission Helical Gear Reducer
,Hollow Shaft helical type gearbox
Product Description

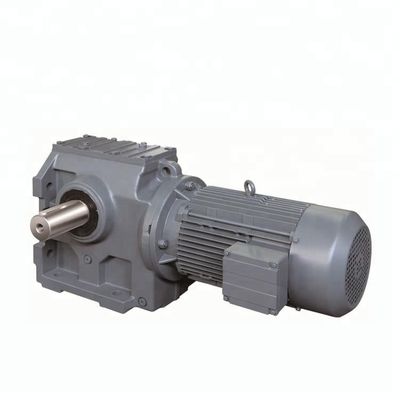

Hollow Shaft Flanged Helical Gear Reducer Worm Gearbox for Intelligent Transmission
Product Specifications
| Attribute | Value |
|---|---|
| Output Torque | 10-4890(N.M) |
| Input Speed | 1450rpm |
| Output Speed | 0.12-397(rpm) |
| Warranty | 1 year |
| Color | Customer Requirement |
| Efficiency | 94%~98%(depends on the transmission stage) |
| Mounting Position | Foot, flange, torque, arm, hollow/s |
| Gearing Arrangement | Worm |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
Product Description
Our S Series flange-mounted helical-worm gear units combine straightforward design with remarkable efficiency. These gearboxes feature customizable torque and speed settings for space-saving installations in industrial applications.
Key Features
- Linear type design for easy installation and maintenance
- Incorporates premium brand components for pneumatic and electric parts
- High pressure double crank system for precise die control
- Automated operation with intelligent control systems
- Compatible with air conveyor systems for inline filling machine integration
Technical Specifications
Gear Material: 20CrMnTi alloy steel
Surface Hardness: HRC58°~62°
Core Hardness: HRC33~40
Shaft Material: 42CrMo alloy steel
Shaft Hardness: HRC25~30
Gear Precision: Accurate grinding, 6~5 Grade
Heat Treatment: Tempering, cementing, quenching
Noise Level: 60~68dB (MAX)
Temperature Rise: 40℃ (MAX)
Oil Temperature: 50℃ (MAX)
Vibration: ≤20μm
Backlash: ≤20Arcmin
Bearings: China top brand or requested brands
Size and Performance Data
| SIZE | Shaft Dia. (mm) | Center Height | Output Flange Dia. (mm) | Power (kw) | Ratio | Permissible Torque(N.m) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 37 | φ20k6 | 82 | φ120/160 | 0.18-0.75 | 10.27-165.71 | 90 | 7 |
| 47 | φ25k6 | 100 | φ160 | 0.18-1.50 | 11.46-244.74 | 170 | 10 |
| 57 | φ30k6 | 180 | φ200 | 0.18-3.0 | 10.78-196.21 | 300 | 14 |
| 67 | φ35k6 | 140 | φ200 | 0.25-5.50 | 11.55-227.20 | 520 | 26 |
| 77 | φ45k6 | 180 | φ250 | 0.55-7.50 | 9.96-241.09 | 1270 | 50 |
| 87 | φ60m6 | 225 | φ350 | 0.75-15.0 | 11.83-223.26 | 2280 | 100 |
| 97 | φ70m6 | 280 | φ450 | 1.50-22.0 | 12.5-230.48 | 4000 | 170 |
