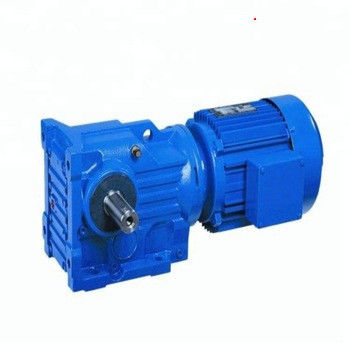

Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor
  • name
  • name
  • name

Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE. ISO9001
Model Number
S/sa/saf/saz/sf37
Output Torque:
10-4890(N.M)
Input Speed:
1450rpm
Output Speed:
0.12-397(rpm)
Warranty:
1 Year
Color:
Customer Requirement
Efficiency:
94%~98%(depends On The Transmission Stage)
Mounting Position:
Foot,flange,torque,arm,hollow/s
Gearing Arrangement:
Worm
Lubricating Oil:
GB L-CKC220-460,Shell Omala220-460
Gear Material:
20CrMnTi Alloy Steel
Surface Hardness Of Gears:
HRC58°~62°
Gear Core Hardness:
HRC33~40
Highlight:

hollow shaft helical bevel gear reducer

,

Worm helical bevel gear reducer

,

Worm hollow shaft helical gearbox

Product Description
Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor
Product Specifications
Attribute Value
Output Torque 10-4890 (N.M)
Input Speed 1450rpm
Output Speed 0.12-397 (rpm)
Warranty 1 year
Color Customer Requirement
Efficiency 94%~98% (depends on transmission stage)
Mounting Position Foot, flange, torque, arm, hollow/s
Gearing Arrangement Worm
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62°
Gear core hardness HRC33~40
Product Overview
The S Series Helical-Worm Geared Reducer features a modular design with high-stainless cast iron casing. Combining helical gear and worm gear technologies, it delivers superior efficiency and strength compared to standard aluminum alloy worm gearboxes. These drives are suitable for all industrial applications and can be customized to meet specific torque and speed requirements.
Technical Specifications
SIZE Shaft Dia. (mm) Center Height Output Flange Dia. (mm) Power (kw) Ratio Permissible Torque(N.m) Weight (kgs)
37 φ20k6 | φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 | φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 | φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 | φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 | φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 | φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 | φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
Product Images
Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 0 Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 1 Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 2 Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 3 Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 4 Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 5
Quality Assurance
Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 6 Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 7 Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 8
Manufacturing Process
Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 9
Packaging & Shipping
Hollow Shaft Worm Helical Bevel Gear Reducer Gearbox With Inline Motor 10
Frequently Asked Questions
Q1: What should I provide when choosing a gearbox/speed reducer?
The best way is to provide the motor drawing with parameters. Our engineers will recommend the most suitable gearbox model. Alternatively, provide these specifications:
1) Type, model and torque
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q2: Are you a manufacturer?
[Answer to be provided by manufacturer]
