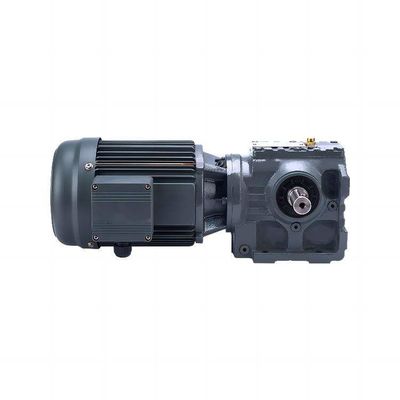

HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

CE. ISO9001

Model Number

S/sa/saf/saz/sf37

Output Torque:

10-4890(N.M)

Input Speed:

1450rpm

Output Speed:

0.12-397(rpm)

Warranty:

1 Year

Color:

Customer Requirement

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Foot,flange,torque,arm,hollow/s

Gearing Arrangement:

Lubricating Oil:

GB L-CKC220-460,Shell Omala220-460

Gear Material:

20CrMnTi Alloy Steel

Surface Hardness Of Gears:

HRC58°~62°

Gear Core Hardness:

HRC33~40

Highlight:

HRC33 helical gear assembly

linear helical gear assembly

Worm helical reduction gearbox

Product Description

HRC33 Linear Worm Reduction Helical Gear Assembly For Conveyor Belt

Product Specifications

Output Torque	10-4890(N.M)
Input Speed	1450rpm
Output Speed	0.12-397(rpm)
Warranty	1 year
Color	Customer Requirement
Efficiency	94%~98%(depends on the transmission stage)
Mounting Position	Foot, flange, torque, arm, hollow/s
Gearing Arrangement	Worm
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62°
Gear core hardness	HRC33~40

Product Description

The S series gear reducer features a simple, cost-effective design ideal for machine and plant applications. Its linear power transmission ensures quiet operation, while the helical-worm gear combination significantly improves efficiency compared to standard worm gear units.

Technical Specifications

SIZE	Shaft Dia. (mm)	Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
37	φ20k6	φ20h7	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6	φ25h7	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6	φ30h7/35h7	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6	φ40h7/45h7	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6	φ50h7/60h7	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6	φ60h7/70h7	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6	φ70h7/90h7	280	φ450	1.50-22.0	12.5-230.48	4000	170
