GL-5P Series Boiler Grate Speed Reducer Boiler Control Gearbox Manufacturer

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	5-8 work days
Payment Method:	T/T
Supply Capacity:	150sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

GL-5P

Gearing Arrangement:

Output Torque:

5000-130000

Input Speed:

Output Speed:

0.01838-0.23rpm

Applicable Industries:

Retail, Boiler

Product Description

GL-5P Series Boiler Grate Speed Reducer Boiler Control Gearbox

Product Attributes

Attribute	Value
Gearing Arrangement	Spur
Output Torque	5000-130000
Input Speed	1500
Output Speed	0.01838-0.23rpm
Applicable Industries	Retail, boiler

Product Description

The GL-P series boiler row reducer adopts 3K structure involute gear and planetary transmission, featuring a floating equalizing mechanism and power splitting. Equipped with electromagnetic speed regulating motor and controller, it enables smooth stepless speed regulation with wide range, convenient application, and reliable performance. Includes a safety clutch overload protection mechanism.

This series of reducers features optimized design with advanced structure, small size, high efficiency, long life, low noise and easy maintenance.

Available models: GL-5P grate speed governor, GL-5PA grate governor, GL-10P boiler reducer, GL-16P grate reducer, GL-20P grate governor, GL-30P boiler grate reducer, GL-40P boiler grate reducer, GL-100P boiler grate reducer.

Specifications

Model: GL-5P grate speed reducer

Installation: 1. Crosshead coupling 2. Electromagnetic speed regulating motor 3. Base 4. Main unit of boiler grate reducer 5. Main unit of belt reducer. Installation dimensions can be customized according to user needs.

Motor: Factory equipped motor (Siemens, ABB, etc.)

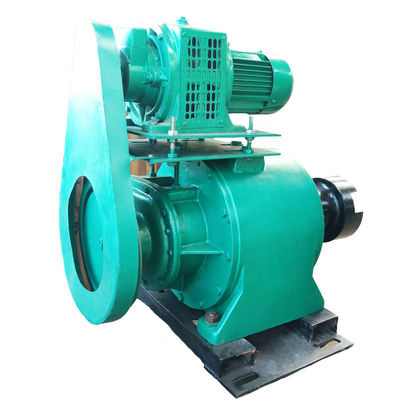

Product Images

Operating Procedure

Before starting, ensure the controller switch (K) is in the "off" position and the master potentiometer is set to zero.
Startup: First close the contactor of the grate motor, then close the controller switch (K) after burning, and slowly rotate the master potentiometer to the required speed.
Shutdown: First turn the master potentiometer to zero, then disconnect the controller switch (K), and finally disconnect the contactor of the grate motor after 2-3 minutes.

Safety Clutch Specifications
