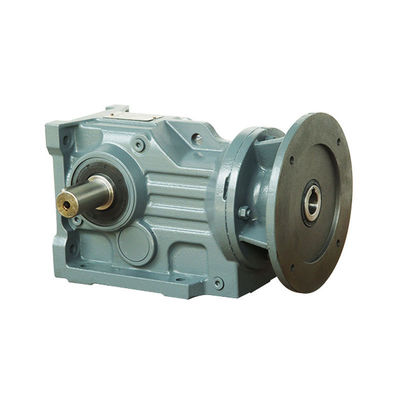

High Torque Speed Helical Gear Reducer Reduction Gearbox 90 Degree
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 8-15work days |
| Payment Method: | T/T |
| Supply Capacity: | 100sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
R
Gearing Arrangement:
Helical
Output Torque:
50000N.m
Input Speed:
600~1800rpm
Output Speed:
14-280rpm
Weight (KG):
50kg
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
7.5~100
Mounting Position:
Foot-mounted
Installation Form:
Foot-mounted, Flange-mounted, Torgue Arm
Highlight:
High Torque Helical Gear Reducer
,90 Degree Helical Gear Reducer
,High Torque helical reduction gearbox
Product Description
High Torque Speed Helical Gear Reducer Reduction Gearbox 90 Degree
Product Specifications
| Attribute | Value |
|---|---|
| Gearing Arrangement | Helical |
| Output Torque | 50000N.m |
| Input Speed | 600~1800rpm |
| Output Speed | 14-280rpm |
| Weight | 50kg |
| Warranty | 1 year |
| Color | Customer Requirement |
| Ratio | 7.5~100 |
| Mounting Position | Foot-mounted |
| Installation Form | Foot-mounted, flange-mounted, torque arm |
Product Overview
The R series helical gear reducer is an ideal solution for applications requiring high output speeds or low weight. With exceptional efficiency, these units provide an optimal balance between output torque and installation space, making them suitable for a wide range of industrial applications.
Our helical reducers offer high versatility, excellent combination capabilities, and heavy load capacity. Additional advantages include:
- Easy attainment of various transmission ratios
- High operational efficiency
- Low vibration levels
- High permissible axis radial load
- Compatibility with various reducers and variators
Structural Variations
- R: Shaft extension type foot installation
- RF: Flange installation
- R...F: Foot flange installation
- RM: Flange installation with extended bearing box
- RX: Single-stage foot installation
- RXF: Single-stage flange installation
Key Industries Served
- Chemical mixing
- Hoisting and transportation
- Iron and steel metallurgy
- Coal mining
- Cement and building materials
- Paper manufacturing
- Electric energy
Technical Specifications
| Specification | Details |
|---|---|
| Model Range | R47-R197 |
| Efficiency | 94%~98% (depends on transmission stage) |
| Housing Material | HT250 high-strength cast iron |
| Gear Material | 20CrMnTi |
| Gear Surface Hardness | HRC58°~62° |
| Shaft Material | 40Cr |
| Gear Precision | Accurate grinding, 6 Grade |
| Lubrication | Mineral oil |
| Heat Treatment | Tempering, carburizing, quenching |
| Bearings | NSK brand |
| Oil Seals | NAK or equivalent |
| Noise Level | <70dB |
| Temperature Rise | <40°C |
| Oil Temperature Rise | <50°C |
| Vibration | ≤20µm |
| Input Power | 0.12~90KW |
| Output Torque Range | 800~180000N.m |
| Transmission Ratio | 5.31~21342 |
