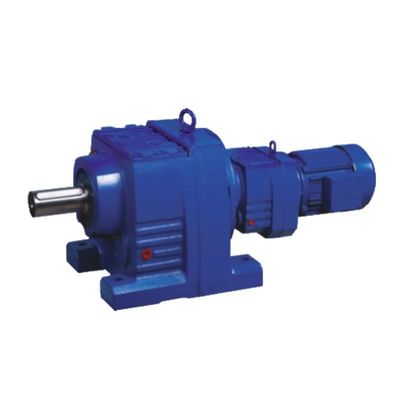

Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
R, RF, RX ,RXF,RM
Gearing Arrangement:
Helical
Output Torque:
50000N.m
Input Speed:
600~1800rpm
Output Speed:
14-280rpm
Weight (KG):
50kg
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
7.5~100
Mounting Position:
Foot-mounted
Installation Form:
Horizontal (foot Mounted) Or Vertical (flange Mounted)
Size:
R17~R167
Input Form:
IEC Flange, Direct With Motor, Shaft Input
Phase:
Single Or Three Phase
Gear Material:
Low Carbon High Alloy Steel
Heat Treatment:
Carburising/quenching/gear Grinding
Highlight:

Coaxial bevel helical reducer

,

1800rpm bevel helical reducer

,

coaxial helical inline Reducer

Product Description

RF Series Inline Coaxial Helical Gearbox with Flange Mounted

Description:

RF series helical gearbox is a coaxial helical gearbox with a modular design. It uses helical gears as transmission parts, and its work efficiency is higher than other types of reducers. It has features of finely ground tooth surfaces, low noise, compact structure, sophisticated design, and various installation methods. Multi-directional combined installation forms and structure forms are available according to the customer’s needs to meet the needs of various transmission conditions. RF series helical gear reducer can be combined with R series reducer, F series reducer, K series reducer, and S series reducer, which is suitable for special low-speed applications.


Specification:



Size 17 27 37 47 57 67 77 87 97 107 137 147 167
Structure R RF
Input power
rating (kW)		 0.18-0.75 0.18-3 0.18-3 0.18-5.5 0.18-7.5 0.18-7.5 0.18-11 0.55-22 0.55-30 22-45 5.5-55 11-90 11-160
Ratio 3.83-74.84 3.37-135.09 3.33-134.82 3.83-176.88 4.39-186.88 4.29-199.81 5.21-195.24 5.36-246.54 4.49-289.74 5.06-249.16 5.15-222.60 5.00-163.31 10.24-229.71
Permissible torque(N.M) 85 130 200 300 450 600 820 1550 3000 4300 8000 13000 18000


Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 0Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 1
Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 2Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 3
Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 4
Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 5Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 6Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 7



Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 8Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 9

Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 10

Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 11
Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 12

Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 13
Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 14Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 15

Application :

Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 16Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 17

R series process :

Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 18
Packing and shipping way :
Inline Coaxial Bevel Helical Reducer Gearbox Flange Mounted 1800rpm 19
