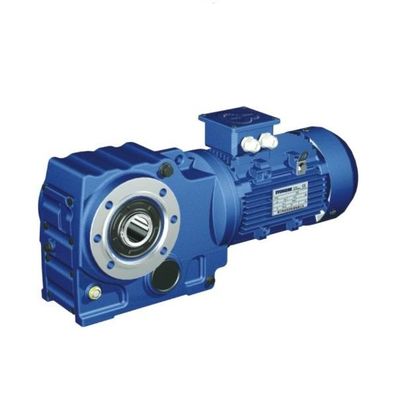

K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
K KA KF KAF
Gearing Arrangement:
Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series Gearbox Reducer With AC Motor 380V
Output Torque:
50000N.m
Input Speed:
600~1800rpm
Output Speed:
280 Rpm
Weight (KG):
60kg
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
5~180
Size:
K KA KF KAF KAZ KAT KAB
Efficiency:
Over 95%
Gear Material:
20CrMnTi
Housing Material:
HT250 High-strength Cast Iron
Input Ways:
Motor Input, AM (IEC) Flange Input, And Shaft Input
Output Way:
Solid Shaft Output Or Hollow Shaft Output
Motor Type:
AC Motor
Highlight:

K127 Helical Gear Reducer

,

Explosion Proof Helical Gear Reducer

,

Explosion Proof helical gear motor

Product Description
K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor
Product Specifications
Attribute Value
Gearing Arrangement Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque 50000N.m
Input Speed 600~1800rpm
Output Speed 280 rpm
Weight 60kg
Warranty 1 year
Ratio 5~180
Size K KA KF KAF KAZ KAT KAB
Efficiency Over 95%
Gear material 20CrMnTi
Housing material HT250 high-strength cast iron
Input ways Motor input, AM (IEC) flange input, and shaft input
Output way Solid shaft output or hollow shaft output
Motor type AC motor
Product Features
  • Modular Design: Easily connects with different motor types and power inputs for flexible solutions
  • Wide Ratio Range: Offers closely divided ratios from 5-180, with combined units achieving extremely low output speeds
  • Versatile Mounting: No strict limitations on mounting arrangement
  • High Strength Construction: Features high-strength cast iron housing and precision-ground, carburized gears
  • Extended Service Life: Properly maintained components can last over 25,000 hours
  • Low Noise Operation: Precision machining and assembly ensure quiet performance
  • High Efficiency: Achieves up to 95% efficiency in gear units
  • Exceptional Load Capacity: Handles large radial loads and axial loads up to 5% of radial capacity
Operating Conditions

Designed for operation in ambient temperatures from -10℃ to 40℃ at altitudes up to 1000m above sea level. Suitable for both clockwise and counter-clockwise rotation with no specific application limitations. For aggressive environments, consult our technical department.

Maintenance Guidelines

Installation: Requires flat ground with good ventilation conditions for optimal performance.

Routine Care: Essential maintenance includes:

  • Regular lubrication oil checks and replacement
  • Inspection of installation base, seals, and transmission shafts
  • Housing maintenance and cleaning

Proper maintenance can extend service life by at least 30%. Our specialized cleaning system maintains gearbox integrity during oil changes.

Technical Specifications
Input Power Rating and Maximum Torque
Size 37 47 57 67 77 87 97 107 127 157 167 187
Input Power (kW) 0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-1.1 0.75-22 1.1-30 3-45 7.5-90 11-160 11-200 18.5-200
Ratio 5.36-106.38 5.81-131.87 6.57-145.15 7.14-144.79 7.22-192.18 7.19-192.27 8.95-175.47 8.74-141.93 8.68-146.07 12.66-150.03 17.35-164.44 17.97-178.37
Torque (Nm) 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Weight (kg) 11 20 27 33 57 85 130 250 380 610 1015 1700
Weights are mean values for reference only. Maximum torque represents the highest value for each size across different ratios.
Available Models
K37, K47, K57, K67, K77, K87, K97, K107, K127, K157, K167, K187
KA37, KA47, KA57, KA67, KA77, KA87, KA97, KA107, KA127, KA157, KA167, KA187
KF37, KF47, KF57, KF67, KF77, KF87, KF97, KF107, KF127, KF157, KF167, KF187
KAF37, KAF47, KAF57, KAF67, KAF77, KAF87, KAF97, KAF107, KAF127, KAF157, KAF167, KAF187
KAZ37, KAZ47, KAZ57, KAZ67, KAZ77, KAZ87, KAZ97, KAZ107, KAZ127, KAZ157, KAZ167, KAZ187
KAT37, KAT47, KAT57, KAT67, KAT77, KAT87, KAT97, KAT107, KAT127, KAT157, KAT167, KAT187
KAB37, KAB47, KAB57, KAB67, KAB77, KAB87, KAB97, KAB107, KAB127, KAB157, KAB167, KAB187
Mounting Configuration
K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 0 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 1
Product Images
K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 2 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 3 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 4 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 5 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 6 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 7 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 8
Industrial Applications
K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 9 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 10 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 11 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 12 K127 Helical Gear Reducer Transmission Flange Explosion Proof Motor 13
