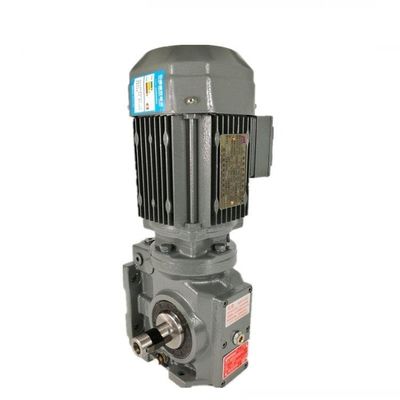

Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

K KA KF KAF

Gearing Arrangement:

Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series Gearbox Reducer With AC Motor 380V

Output Torque:

50000N.m

Input Speed:

600~1800rpm

Output Speed:

280 Rpm

Weight (KG):

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

5~180

Size:

K KA KF KAF KAZ KAT KAB

Efficiency:

Over 95%

Gear Material:

20CrMnTi

Housing Material:

HT250 High-strength Cast Iron

Input Ways:

Motor Input, AM (IEC) Flange Input, And Shaft Input

Output Way:

Solid Shaft Output Or Hollow Shaft Output

Motor Type:

AC Motor

Highlight:

Customized Helical Gear Reducer

20CrMo Helical Gear Reducer

20CrMo bevel helical gear box

Product Description

Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel

Product Specifications

Attribute	Value
Gearing Arrangement	Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque	50000N.m
Input Speed	600~1800rpm
Output Speed	280 rpm
Weight	60kg
Warranty	1 year
Color	Customer Requirement
Ratio	5~180
Size	K KA KF KAF KAZ KAT KAB
Efficiency	Over 95%
Gear material	20CrMnTi
Housing material	HT250 high-strength cast iron
Input ways	Motor input, AM (IEC) flange input, and shaft input
Output way	Solid shaft output or hollow shaft output
Motor type	AC motor

High Torque K Series 90 Degree Gear Motor Reducer

The design concepts of these reducers focus on a combination of standardization and modularization, allowing for interchangeability with leading international brands while maintaining structural rigidity and compactness. Leveraging the high accuracy of helical gears, the reducers operate at 90% efficiency, offering increased stability and reduced noise levels.

With three stages of reduction, they provide a wide ratio accommodation range from 1/8 to 1/215, surpassing worm gear reducers. These units support power ranges from 1/4hp up to 60hp, adapting to various requirements and applications. Constructed with 20CrMo alloy steel and carburizing heat treatment, the bevel and helical gears ensure enhanced performance.

The 90° transmission and compact configuration minimize mounting space, offering flexibility in installation positions (M1~M6) as specified by customers. The products boast modern aesthetics while maintaining high rigidity, enabling easy connections with different motors or power sources and achieving various solutions for diverse needs. Additionally, they feature high strength, compact dimensions, multiple ratio options, flexible mounting arrangements, long service life, low noise levels, and high efficiency (up to 95%).

K Series Helical Bevel Gearbox Connection Code and Form

Size	Input Power Rating and Maximum Torque
Size	37	47	57	67	77	87	97	107	127	157	167	187
Input Power Rating (kW)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-1.1	0.75-22	1.1-30	3-45	7.5-90	11-160	11-200	18.5-200
Ratio	5.36~106.38	5.81≈131.87	6.57~145.15	7.14~144.79	7.22-192.18	7.19~192.27	8.95-175.47	8.74-141.93	8.68-146.07	12.66~150.03	17.35~164.44	17.97-178.37
Torque (Nm)	200	400	600	820	1550	2700	4300	8000	13000	18000	32000	50000

Size	37	47	57	67	77	87	97	107	127	157	167	187
Weight (kg)	11	20	27	33	57	85	130	250	380	610	1015	1700

The weights are mean values, only for reference.

Maximum torque means the biggest one of the maximum torque related to the different ratio for the specified size.

Available Reducer Models

K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187

KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127,KA157,KA167,KA187

KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187

KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187

KAZ37,KAZ47,KAZ57,KAZ67,KAZ77,KAZ87,KAZ97,KAZ107,KAZ127,KAZ157,KAZ167,KAZ187

KAT37,KAT47,KAT57,KAT67,KAT77,KAT87,KAT97,KAT107,KAT127,KAT157,KAT167,KAT187

KAB37,KAB47,KAB57,KAB67,KAB77,KAB87,KAB97,KAB107,KAB127,KAB157,KAB167,KAB187

Mounting Position and Motor Terminal Box

Applications

Manufacturing Process

Packaging and Shipping
