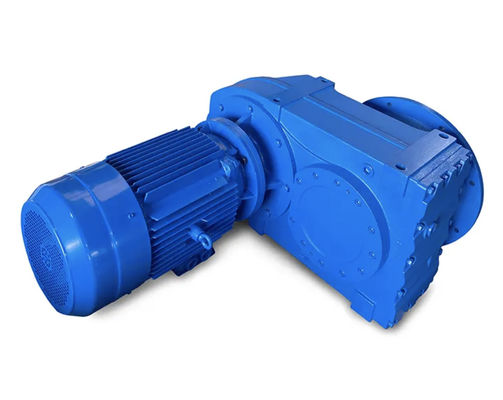

F Series Parallel Shaft Mounted Gear Reducer Helical Gearbox Motor

Products

Rotary Airlock Valve

anna@rotary-reducer.com

+86-15300538565

Contact Now

F Series Parallel Shaft Mounted Gear Reducer Helical Gearbox Motor

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

Output Torque:

10.6-952000NM

Input Speed:

750-1500rpm

Output Speed:

14-280rpm

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

3.77~276.77

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Flange, Hollow Shaft, Solid Shaft

Certificate:

ISO9001. CE

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company

Material:

Gear: 20CrMnTi Housing: HT250 High Strength Cast Iron

Product Name:

Helical Gear Motor Speed Reducer F Series Flange Mounted Parallel Shaft Parallel Geared Motor Helical Speed Reducer

Highlight:

F Series shaft mounted gear reducer

shaft mounted gear reducer Motor

F Series gear motor gearbox

Product Description

F Series Parallel Shaft Helical Gear Hard Tooth Surface Speed Reducer Gearbox With AC Motor

Description :

Helical Gearbox Reducer F Series Gear Reducer, featuring a parallel output design,the combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness. compact structure,2~3 stages of reduction provides a wide range of ratio accommodation from 1/4~1/254. and high transmission torque for stable operation, low noise levels, and an extended service life. Choose from versatile installation methods such as base, hollow shaft, flange, torque arm, and small flange installations to suit your specific needs.the products are designed with modern exterior while maintaining high rigidity.

Apart of type specification :

Size	Shaft Dia. (mm)		Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque (n.m)	Weight (kgs)
Size	Solid Hallow		Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque (n.m)	Weight (kgs)
37	φ25k6	φ30h7	76	φ110/160	0.18-3.0	3.81-128.51	200	13
47	φ30k6	φ35h7	77	φ120/200	0.18-3.0	5.06-189.39	400	18
57	φ35k6	φ40h7	93	φ155/250	0.18-5.50	5.18-199.70	600	34
67	φ40k6	φ40h7	97	φ155/250	0.18-5.50	4.21-228.91	820	55
77	φ50k6	φ50h7	121	φ170/300	0.37-11.0	4.30-281.71	1500	90
87	φ60m6	φ60h7	152	φ215/350	0.75-22.0	4.12-270.68	3000	150
97	φ70m6	φ70h7	178	φ260/450	1.10-30.0	4.68-280.76	4300	260
107	φ90m6	φ90h7	200	φ304/450	2.20-45.0	6.20-254.40	7840	402
127	φ110m5	φ100h7	236	φ350/550	7.5-90.0	4.63-172.17	12000	700
157	φ120m6	φ120h7	286	φ400/660	11.0-200.0	11.92-267.43	18000	950

Structure:

a.F—common shaft extension coupling parallel shaft helical gear reducer;
b.FA type—shaft-mounted parallel shaft helical gear reducer;
c.FF type—flanged parallel shaft oblique gear Gear reducer;
d.FAF type-shaft mounted flange type parallel shaft helical gear reducer.

Reducer model:

F37, F47, F57, F67, F77, F87, F97, F107, F127, F157
FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157
FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157
FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
FAZ37, FAZ47, FAZ57, FAZ67, FAZ77, FAZ87, FAZ97, FAZ107, FAZ127, FAZ157
FS37, FS47, FS57, FS67, FS77, FS87, FS97, FS107, FS127, FS157
F37R17, F47R17, F57R37, F67R37, F77R37, F87R57, F97R57, F107R77, F127R77, F107R77, F127R77, F127R87, F157R97
FAS37, FAS47, FAS57, FAS67, FAS77, FAS87, FAS97, FAS107, FAS127, FAS157
FA37R17, FA47R17, FA57R37, FA67R37, FA77R37, FA87R57, FA97R57, FA107R77, FA127R77, FA107R77, FA127R77, FA127R87, FA157R97
FFS37, FFS47, FFS57, FFS67, FFS77, FFS87, FFS97, FFS107, FFS127, FFS157
FF37R17, FF47R17, FF57R37, FF67R37, FF77R37, FF87R57, FF97R57, FF107R77, FF127R77, FF107R77, FF127R77, FF127R87, FF157R97
FAFS37, FAFS47, FAFS57, FAFS67, FAFS77, FAFS87, FAFS97, FAFS107, FAFS127, FAFS157
FAF37R17, FAF47R17, FAF57R37, FAF67R37, FAF77R37, FAF87R57, FAF97R57, FAF107R77, FAF127R77, FAF107R77, FAF127R77, FAF127R87,
FAF157R97
FAZS37, FAZS47, FAZS57, FAZS67, FAZS77, FAZS87, FAZS97, FAZS107, FAZS127, FAZS157
FAZ37R17, FAZ47R17, FAZ57R37, FAZ67R37, FAZ77R37, FAZ87R57, FAZ97R57, FAZ107R77, FAZ127R77, FAZ107R77, FAZ127R77, FAZ127R87,
FAZ157R97

Application :

Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

Mounting position and Position of the motor terminal box :

Why choose us :

F Series Parallel Shaft Mounted Gear Reducer Helical Gearbox Motor 5

F series process :

Packing and shipping way :
