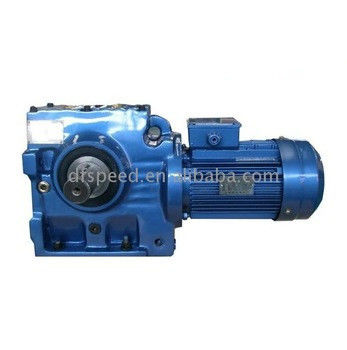

Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm
  • name
  • name
  • name
  • name

Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE. ISO9001
Model Number
S/sa/saf/saz/sf37
Output Torque:
10-4890(N.M)
Input Speed:
1450rpm
Output Speed:
0.12-397(rpm)
Warranty:
1 Year
Color:
Customer Requirement
Efficiency:
94%~98%(depends On The Transmission Stage)
Mounting Position:
Foot,flange,torque,arm,hollow/s
Gearing Arrangement:
Worm
Lubricating Oil:
GB L-CKC220-460,Shell Omala220-460
Highlight:

Single Reduction helical bevel gear box

,

1450rpm helical bevel gear box

,

1450rpm single reduction helical gearbox

Product Description

Helical-Worm Gearmotor S Series gearbox reducer electric motor reduction gearbox gear

Description :

Our helical-worm gear units boast a straightforward design coupled with remarkable efficiency. Pictured is a gearmotor featuring a helical-worm gear unit, showcasing the simplicity that drives cost-effectiveness. These units offer customizable torque and speed settings, enabling space-saving installations.

Choose from double, triple, quadruple, and quintuple reduction units, available in foot, flange, or shaft-mounted configurations. Opt for motorized, motor-ready, or a reducer featuring a keyed input shaft to suit your specific needs.

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .



Specification :


Gear material 20CrMnTi alloy steel

Surface hardness of gears
HRC58°~62°
Gear core hardness HRC33~40

Input/Output shaft material
42CrMo alloy steel
Input /Output shaft hardness
HRC25~30

Machining precision of gears		 Accurate grinding,6~5 Grade

Lubricating oil		 GB L-CKC220-460,Shell Omala220-460
Heat treatment
Tempering,cementiting,quenching,etc.

Eficiency		 94%~96%(depends on the trans mis sion stage)
Noise (MAX) 60~68dB

Temp.rise(MAX)		 40℃

Temp.rise (Oil)(MAX)		 50°℃

Vibration
s20μm
Backlash
s20Arcmin

Brand of bearings
China top brand bearing,or other brands requested


SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 0Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 1

Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 2





Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 3





Why choose us :



Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 4Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 5Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 6


Reducer process :

Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 7
Packing and shipping way :
Single Reduction Helical Bevel Gear Box Gearmotor 1450rpm 8
