Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface

Products

Rotary Airlock Valve

anna@rotary-reducer.com

+86-15300538565

Contact Now

Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

CE. ISO9001

Model Number

S/sa/saf/saz/sf37

Output Torque:

10-4890(N.M)

Input Speed:

1450rpm

Output Speed:

0.12-397(rpm)

Warranty:

1 Year

Color:

Customer Requirement

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Foot,flange,torque,arm,hollow/s

Gearing Arrangement:

Lubricating Oil:

GB L-CKC220-460,Shell Omala220-460

Gear Material:

20CrMnTi Alloy Steel

Surface Hardness Of Gears:

HRC58°~62°

Gear Core Hardness:

HRC33~40

Highlight:

Helical Gear Reducer AC Motor

Helical Gear Reducer unit

Hardened Tooth premium helical gear unit

Product Description

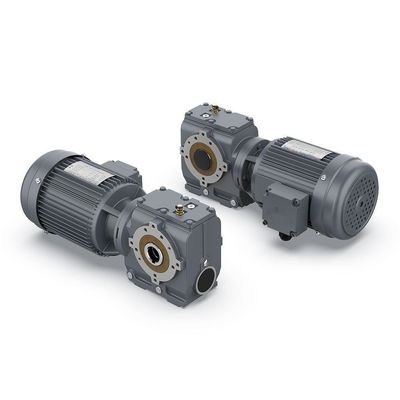

S Series Helical-worm Ac Geared Motor Hardened Tooth Surface Right Angle Helical Gearmotor

Description :

The simple design makes for cost-effectiveness. Use the S series gear units to implement simple tasks in your machine or plant applications. The linear power transmission makes the helical-worm gear units especially quiet in operation. The combination with a helical gear stage significantly increases the efficiency compared to pure worm gear units.
1. Housing: Cast Iron
2. Gears: Helical-bevel Gears
3. Input Configurations: Equipped with Electric Motors, Solid Shaft Input, IEC-normalized Motor Flange
4. Applicable Motors: Single Phase AC Motor, Three Phase AC Motor, Brake Motors, Inverter Motors,
Multi-speed Motors, Explosion-proof Motor, Roller Motor
5. Output Configurations: Solid Shaft Output, Hollow Shaft Output

Specification :

SIZE	Shaft Dia. (mm)		Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
SIZE	Solid Hallow		Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
37	φ20k6	φ20h7	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6	φ25h7	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6	φ30h7/35h7	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6	φ40h7/45h7	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6	φ50h7/60h7	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6	φ60h7/70h7	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6	φ70h7/90h7	280	φ450	1.50-22.0	12.5-230.48	4000	170

Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface 0

Why choose us :

Premium Helical Gear Reducer AC Motor Unit Hardened Tooth Surface 6

Reducer process :

Packing and shipping way :

FAQ

Q1 : What should I provide when I choose gearbox/speed reducer?

A1: The best way is to provide the motor drawing with parameter.
Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:

1) Type, model and torque.

2) Ratio or output speed

3) Working condition and connection method

4) Quality and installed machine name

5) Input mode and input speed

6) Motor brand model or flange and motor shaft size

Q2: Are you a manufacturer?

A2: Yes. We are a professional motor and reducer manufacturer for15 years

Q3: What is your delivery time?

A3: 10 days for sample order, 15 days for container order.

Q4: Can I get a sample first?

A4: Sure, we are honored to offer you sample for test before placing a formal order.

Q5: What is your MOQ ?

A5: 1 pc per model for factory brand and package, 50 pcs per model for OEM brand and package.

Q6: Do you provide OEM/ODM service?
A6: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.

Q7: How does your factory do regarding quality control?
A7: Quality is priority. All production process strict to follow Quality system, QC team check the quality during the production, and do the test before each shipment.

Q8: What's your warranty terms?
A8:Warranty: 1 year after the shipping date against B/L.

Q9: How do you make our business long-term and good relationship?
A9:

1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
