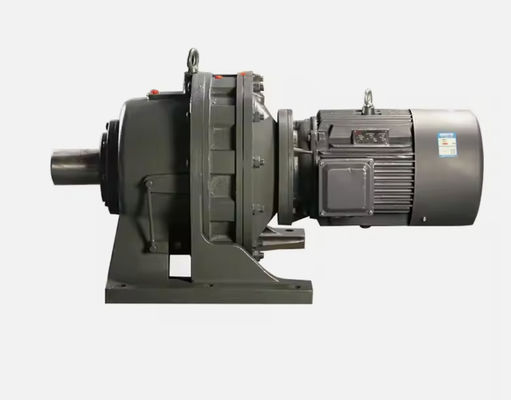

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox

Products

Rotary Airlock Valve

anna@rotary-reducer.com

+86-15300538565

Contact Now

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	5-8 work days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	150sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Gearing Arrangement:

Planetary Motor

Output Torque:

2.6-1195N.M

Input Speed:

300-1800Rpm

Output Speed:

14-280rpm

Weight (KG):

30kg

Product Name:

Bwd4 Horizontal Foot Plate Mounted Ordinary Motor Direct Link Cycloidal Pin Gearbox

Ratio:

9-2800

Material:

Steel Or Cast Iron

Port:

Shanghai, Ningbo

Highlight:

cast iron Cycloidal Gear Reducer

Electric Cycloidal Gear Reducer

Electric cyclo planetary gearbox

Product Description

XW series cycloidal gear reducer horizontal gear motor Planetary gear speed reducers electric motor gearbox

Description :

X/B Series Cycloidal Pin-wheel Reducer
1. Cycloidal Pin-wheel Reducer has.
2. Three methods of single,double and triple.
3. Structure: Horizontal,vertical,double-shaft and direct-joint.
4. It has large transmission torque.
5. And large speed ratio range.
6. Which is a new generation for more expressive.

Product Name	Cycloidal Pin-wheel Reducer
Specifications (Model)	X series,Single	1.2.3.4.5.6.7.8.9.10.11
	B series,Single	0.1.2.3.4.5.6.7.8
	X series,Double	42.53.63.74.84.85.95.106.116.117
	B series,Double	20.31.41.52.53.63.74.84.85
	X series,Triple	642.742.842.852.853.952.953.1063.1164.1174
	B series,Triple	420.520.530.531.630.631.741.842
Ratio	Single	6.7.9.11.17.23.25.29.35.43.59.71.87
	Double	121.187.289.391.473.493.595.731.841.1003.1225.1505.1849.2065.2537.3481.5133
	Triple	2055~658603

Cycloidal gear reducer Feature

• Single stage drive with reduction ratio 1:87, high effciency.
• Input shaft and ourput shaft are in the same axis, so it's compact in structure. .
• Cycloid gear with high overlap coefficient, steady the machine and lower the noise.
• The reducer is made by bearing steel, it's has a long sevice life.

Parameters Table

BW,BWD,XW,XWD type(Two stage) shape and installation dimensions

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 0

Appearance of a two-stage horizontal cycloid pinwheel planetary reducer

NO.

Dimensions

Installation size

Shaft end size

weightht

BWE

BWED (≈)

BWE

BWED

BWE, BWED120-195No.

B120	200	320	368	319	306	240	140	144	20	150	280		M8	60	4	13	14	48. 5	45	68	5	17	15	22	50	BWED weight + motor weight
130	250	390	417	368	356	300	160	159	25	200	340		M12	75	4	17	16	59	55	80	5	17	15	22	82
131	250	390	443	373	356	300	160	159	25	200	340	65	M12	75	4	17	16	59	55	80	6	20. 5	18	35	90
141	380	400	505	435	425	340	200	153	25	320	340	65	M12	80	4	22	20	74. 5	70	100	6	20. 5	18	35	140
142	380	400	534	459	425	340	200	153	25	320	340	100	M12	80	4	22	20	74. 5	70	100	6	24. 5	22	40	155
152	440	470	635	535	504	400	240	155	32	380	420		M16	80	4	22	25	95	90	116	6	24. 5	22	40	240
153	440	470	643	547	504	400	240	155	32	380	420		M16	80	4	22	25	95	90	116	8	33	30	55	260
163	520	560	741	645	605	500	280	199	35	440	500		M20	90	4	26	28	106	100	139	8	33	30	55	460
174	600	690	863	754	706	616	325	230	40	500	630		M24	105	6	26	28	116	110	150	10	38	35	62	680
185	810	880	1113	983	880	760	420	324	50	660	800		M30	160	6	32	32	137	130	202	14	48. 5	45	70	1320
195	1040	1160	1502	1350	1160	1000	540	485	60	840	1050		M42	200	6	45	45	190	180	330	14	48. 5	45	70

XWE,XWED42—128No.

X42	195	330	372	319	316	240	150	169	22	145	290	M8	65	4	16	14	48. 5	45	72	5	17	15	22	50	XBWED weight + motor weight
53	260	420	479	409	356	300	160	206	25	150	370	M12	75	4	16	16	59	55	91	6	20. 5	18	35	110
63	335	430	524	454	425	340	200	125	30	275	380	M12	75	4	22	18	69	65	89	6	20. 5	18	35	150
64	335	430	552	478	425	340	200	125	30	275	380	M12	75	4	22	18	69	65	89	6	24. 5	22	40	160
74	380	470	582	508	484	400	220	145	30	320	420	M16	95	4	22	22	85	80	109	6	24. 5	22	40	230
84	440	530	648	574	514	400	250	155	35	380	480	M16	120	4	22	25	95	90	120	6	24.5	22	40	260
85	440	530	682	586	514	400	250	155	35	380	480	M16	120	4	22	25	95	90	120	8	33	30	55	290
95	560	620	784	688	614	500	290	186	40	480	560	M20	120	4	26	28	106	100	141	8	33	30	55	470
106	600	690	863	754	706	616	325	230	40	500	630	M24	105	6	26	28	116	110	150	10	38	35	62	680
117	810	880	1108	983	880	760	420	324	50	660	800	M30	160	6	32	32	137	130	202	12	43	40	65	1320
128	1040	1160	1502	1350	1160	1000	540	485	60	840	1050	M42	200	6	45	45	190	180	330	14	48.5	45	70

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 1

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 2

Each reducer needs to be airtight tested before spraying to minimize the incidence of oilleakage and air leakage.

The long life of the packaged Fanbao reducer is good, thequality is more intimate, and the customer is more assured.

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 3

Boutique output shaft

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 4

High quality cycloldal wheel High-quality bearing steel with excellent fire treatment, high strength, longrolling contact friction at contact parts

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 5

Workshop :

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 6

Cast Iron Planetary Speed Cycloidal Gear Reducer Electric Motor Gearbox 7
