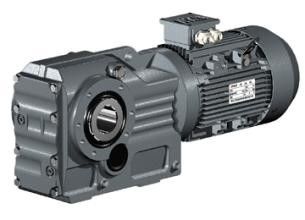

ODM Cycloidal Electric Bevel Helical Gear Reducer Gearbox Unit Right Angle

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

K KA KF KAF

Gearing Arrangement:

K37 K Series Reducer Bevel Helical Gearbox Right Angle Gearbox For Plastic Extruder Cycloidal Electric

Output Torque:

50000N.m

Input Speed:

600~1800rpm

Output Speed:

280 Rpm

Weight (KG):

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

5~180

Size:

K KA KF KAF KAZ KAT KAB

Efficiency:

Over 95%

Gear Material:

20CrMnTi

Housing Material:

HT250 High-strength Cast Iron

Input Ways:

Motor Input, AM (IEC) Flange Input, And Shaft Input

Output Way:

Solid Shaft Output Or Hollow Shaft Output

Motor Type:

AC Motor

Highlight:

Cycloidal Helical Gear Reducer

Right Angle Helical Gear Reducer

ODM helical bevel gear unit

Product Description

K37 K Series Reducer Bevel Helical Gearbox Right Angle Gearbox For Plastic Extruder Cycloidal Electric

Description :

Our K series helical gear reducers offer a range of product features and advantages designed to meet diverse industry needs. These reducers are built on a high modular design, ensuring compatibility with various motors and power sources, enabling seamless integration with different machines. They are efficient, helping save power and costs while requiring minimal maintenance. With excellent sealing properties, they find wide applications across industries, providing high loading support, stable transmission, and low noise levels.

The K series gear reducer stands out for its adherence to international manufacturing standards, boasting high scientific and technological content. It is space-saving, reliable, and durable, with a high overload capacity supporting power outputs up to 132KW. These reducers exhibit low energy consumption and superior performance, with efficiency reaching up to 95%.

The production processes for our gear reducers are meticulously executed to ensure quality and precision. From the box processing involving mechanical modeling of metal molds to gear processing through forging, carburizing, and quenching, and tooth shaft machining that includes keyway cutting and grinding, each step undergoes rigorous inspection and testing to meet the highest standards of excellence.

K Series Helical Bevel Gearbox Connection code and form

Input power rating and maximum torque
Size	37	47	57	67	77	87	97	107	127	157	167	187
Structure	DK DKA DKF DKAF DKAZ DKAT DKAB
input power rating(kw	0.18- 3.0	0.18- 3.0	0.18- 5.5	0.18- 5.5	0.37 1.1	0.75- 22	1.1-30	3-45	7.5-90	11-160	11-200	18.5- 200
Ratio	5.36~ 106.38	5.81≈ 131.87	6.57~ 145.15	7.14~ 144.79	7.22- 192.18	7.19~ 192.27	8.95- 175.47	8.74 141.93	8.68- 146.07	12.66~ 150.03	17.35~ 164.44	17.97- 178.37
torgueNm	200	400	600	820	1550	2700	4300	8000	13000	18000	32000	50000
Gear motor weight
Slze	37	47	57	67	77	87	97	107	127	157	167	187
(kg) Weight	11	20	27	33	57	85	130	250	380	610	1015	1700
Thewelghts aremean values,only for relerence. )Maximum torque means theblggest oneofthe maximum torque relatedtothe dfferent ratiofor the specied size.

More reducer model for your choice :

K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187

KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127,KA157,KA167,KA187

KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187

KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187

KAZ37,KAZ47,KAZ57,KAZ67,KAZ77,KAZ87,KAZ97,KAZ107,KAZ127,KAZ157,KAZ167,KAZ187

KAT37,KAT47,KAT57,KAT67,KAT77,KAT87,KAT97,KAT107,KAT127,KAT157,KAT167,KAT187

KAB37,KAB47,KAB57,KAB67,KAB77,KAB87,KAB97,KAB107,KAB127,KAB157,KAB167,KAB187

Mounting position and Position of the motor terminal box :

ODM Cycloidal Electric Bevel Helical Gear Reducer Gearbox Unit Right Angle 6

ODM Cycloidal Electric Bevel Helical Gear Reducer Gearbox Unit Right Angle 8

Application :

K series process :

Packing and shipping way :

Why choose us ?

1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
