1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

CE. ISO9001

Model Number

S/sa/saf/saz/sf37

Output Torque:

10-4890(N.M)

Input Speed:

1450rpm

Output Speed:

0.12-397(rpm)

Warranty:

1 Year

Color:

Customer Requirement

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Foot,flange,torque,arm,hollow/s

Gearing Arrangement:

Lubricating Oil:

GB L-CKC220-460,Shell Omala220-460

Gear Material:

20CrMnTi Alloy Steel

Surface Hardness Of Gears:

HRC58°~62°

Gear Core Hardness:

HRC33~40

Highlight:

1450rpm Helical Gear Reducer

alloy steel Helical Gear Reducer

20CrMnTi helical gearbox with motor

Product Description

1450rpm Worm Helical Gear Reducer Gearbox With Motor 20CrMnTi Alloy Steel

Product Specifications

Attribute	Value
Output Torque	10-4890(N.M)
Input Speed	1450rpm
Output Speed	0.12-397(rpm)
Warranty	1 year
Color	Customer Requirement
Efficiency	94%~98%(depends on transmission stage)
Mounting Position	Foot, flange, torque, arm, hollow/s
Gearing Arrangement	Worm
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62°
Gear core hardness	HRC33~40

S Series Helical Worm Gearbox Motor Reducer

This helical gear-worm gear speed reducer motor integrates drive components to improve torque and efficiency. It offers a wide range of rotating speeds with excellent universality, suitable for various installation modes while delivering safe, reliable performance and long service life. Complies with international standards.

Key Features:

Combination of helical gear and worm with vertical output provides compact structure and high speed ratio
Concave-convex surface design enables heat dissipation with strong vibration absorption, low temperature rise, and low noise
High drive precision, especially suitable for sites with frequent starts
Compatible with various speed reducers and motor drives
Supports 90º drive operation installation

Configuration Options:

Installation type: Foot, flange, small flange, torque arm
Output type: Solid shaft, hollow shaft, hollow shaft with shrink disk, spline hollow shaft
Input type: Motor, input shaft and flange

Technical Specifications

SIZE	Shaft Dia. (mm)	Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
37	φ20k6 \| φ20h7	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6 \| φ25h7	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6 \| φ30h7/35h7	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6 \| φ40h7/45h7	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6 \| φ50h7/60h7	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6 \| φ60h7/70h7	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6 \| φ70h7/90h7	280	φ450	1.50-22.0	12.5-230.48	4000	170

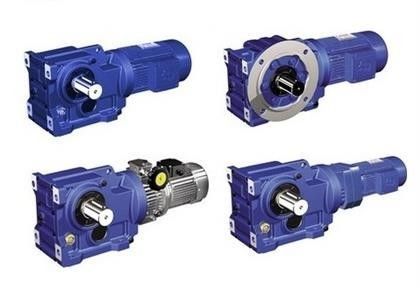

Product Images

Manufacturing Process

Packaging & Shipping
