ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox
  • name
  • name
  • name

ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 5-8 work days
Payment Method: L/C, T/T
Supply Capacity: 150sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
2.6-1195N.M
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Highlight:

ODM Worm Gear Reducer

,

Double Shaft Worm Gear Reducer

,

NMRV 50 1 reduction gearbox

Product Description

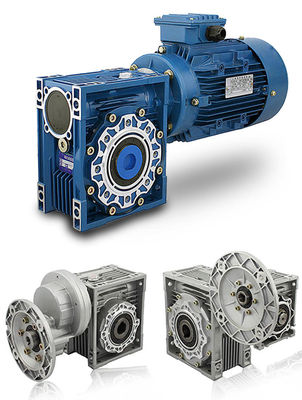

NMRV Worm Gear Speed Reducer with Double Shaft High Torque Worm Gear Reducer



Description



This type of Worm Gear Speed Reducer can change shaft rotation direction while the wiring positive and negative be changed. It's also have addition two characteristics: 1.With self-locking, the output shaft can't rotation when switch off, that is self-locking;

2.Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.



Features:



NMRV 050 series worm gear speed reducer.

It is solidly constructed and ready to install in numerous applications.

Output is 646 lb/in on a hollow 1" diameter x 3-5/8" long keyed shaft.

High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.

This 20:1 ratio speed reducer is rated for 1.14 HP input at 1750 RPM on a hollow 5/8" diameter x 1-7/8" long keyed shaft and 56C mounting flange.

Used for automatic window curtain, grill, robot, optic equipment, electronic game machine, cleaning machine, coin refund devices, miniature hoist, etc.

Technical Parameters:

Ratio: 20:1

Mounting Flange: 56C

Material: Cast Aluminum

Max. Rated Horsepower: 1.14HP

Input Shaft Diameter: 5/8 inch

Output Shaft Diameter: 1 inch

Input Shaft Length / Depth: 1-7/8 inch

Output Shaft Length / Depth: 3-5/8 inch




Model:
NMRV025,030,040,050,063,075,090,110,130,150
Ratio: 1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue,Silver Or On Customer Request
Noise: low noise(<50DB)
Advantage

Eficient and safe operating
Material:
Housing Die-Cast Aluminum Alloy

Worm Gear-Bronze 9-4#
Worm-20CrMnTi with carburizing and quenching,surface harness is 56-
62HRC
Shaf-chromium steel-45#
Packing Carton and Wooden Case
Bearing C&U Bearing
Seal: NAK SKF
Certificate: IS09001,CE,3C,OEM
Warranty 12 months
Input Power. 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,
1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw
IEC Flange:
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,
100B5,100B14,112B5,112B14,132B5,160B5
Lubricant Synthetic &Mineral



ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox 0ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox 1

ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox 2

ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox 3ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox 4ODM NMRV Worm Gear Reducer Double Shaft 50:1 Ratio Gearbox 5
