20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer
  • name
  • name
  • name
  • name
  • name

20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer

Detail Information
Product Description
Detail Information
Highlight:

20 Hp double reduction gearbox

,

Worm double reduction gearbox

,

Worm 20 hp right angle gearbox

Product Description
20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm Reducer
Product Overview

The ZLYJ series reduction gearbox is a precision transmission component specifically engineered for plastic screw extruders. This high-performance unit features:

  • High-precision hard gear surface with thrust block design
  • Compliance with ZBJ19009-88 standards
  • Gear and axis components constructed from high-strength alloy steel
  • Precision carburization, quenching, and tooth grinding process
  • Grade 6 gear precision (GB1009588 standard)
  • Gear surface hardness: HRC54-62
  • Large thrust bearing at hollow input axis for axial thrust resistance

The complete unit offers compact dimensions, exceptional bearing capacity, stable transmission, low noise operation, and high efficiency.

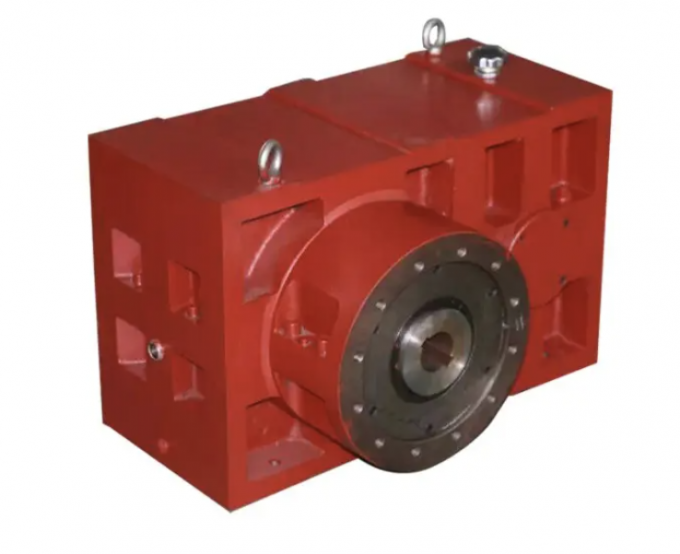

20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer 0 20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer 1
Technical Specifications
Model Ratio Range Axial Thrust (KN) Screw Diameter (mm) Net Weight (KG)
ZLYJ112 8/10/12.5 41 35 95
ZLYJ133 8/10/12.5/14/16/18/20 54 50 144
ZLYJ146 8/10/12.5/14/16/18/20 60 55 205
ZLYJ173 8/10/12.5/14/16/18/20 153 65 256
ZLYJ200 8/10/12.5/14/16/18/20 187 75 500
ZLYJ225 8/10/12.5/14/16/18/20 250 90 650
ZLYJ250 8/10/12.5/14/16/18/20 268 100 815
ZLYJ280 8/10/12.5/14/16/18/20 356 105,110 1020
ZLYJ315 8/10/12.5/14/16/18/20 403 120 1410
ZLYJ330 8/10/12.5/14/16/18/20 448 130,150 1520
ZLYJ375 8/10/12.5/14/16/18/20 495 150,160 1800
ZLYJ420 8/10/12.5/14/16/18/20 545 165 2750
ZLYJ450 8/10/12.5/14/16/18/20 590 165 3560
20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer 2
Primary Applications

The ZLYJ gearbox is primarily used in plastic extruding machinery applications including:

  • EPS (Expandable Polystyrene) extruders
  • PE (Polyethylene) extruders
  • Various plastic extrusion processes
20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer 3 20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer 4 20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer 5
