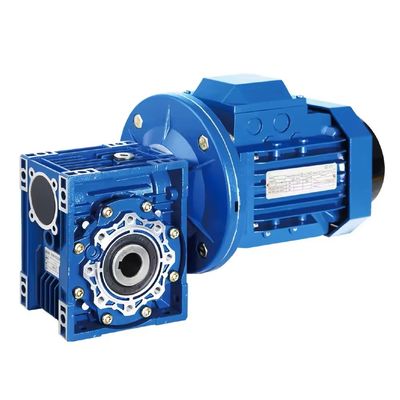

NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm
  • name
  • name
  • name
  • name

NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 5-8 work days
Payment Method: L/C, T/T
Supply Capacity: 150sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
UP TO 2320
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Weight (KG):
6kg
Speed Ratio:
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers
Input Speed:
1400rpm Or Other
Input Form:
IEC Flange For Mounting Motor
Output Form:
Solid Or Hollow Shaft,flange Output
Highlight:

NRV worm reducer

,

NRV040 worm reducer

,

1400rpm premium gears worm reducer

Product Description

RV Series 0.37-7.5KW Ceramic Machinery Equipment Worm Gear Reducer



Description



NMRV/NRV series worm gear and gear motor" is a high-quality product, including worm gear reducer and motor (including three-phase AC motor, single-phase AC motor, DC servo motor and DC permanent magnet motor). The square aluminum alloy gearbox is manufactured based on GB1055588 cylindrical gear parameters and adopts many advanced technologies, so it has a compact structure, good appearance and excellent heat dissipation performance.

This series of motors has the following characteristics: smooth operation, low noise, large transmission ratio, strong torque transmission ability, and can be used with different types of motors to achieve speed regulation.

Working principle
The high-quality AC 230V hollow shaft worm gear motor is used to transmit the rotation and torque of the motor to the working machine. Its function is to reduce the speed and increase the torque through the gear.

Design features
1: Fully carburized with low-carbon aluminum alloy.
2: Gears and gear shafts have high precision.
3: Small size and high torque.



Specification:


Model:
NMRV025,030,040,050,063,075,090,110,130,150
Ratio: 1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue,Silver Or On Customer Request
Noise: low noise(<50DB)
Advantage

Eficient and safe operating
Material:
Housing Die-Cast Aluminum Alloy

Worm Gear-Bronze 9-4#
Worm-20CrMnTi with carburizing and quenching,surface harness is 56-
62HRC
Shaf-chromium steel-45#
Packing Carton and Wooden Case
Bearing C&U Bearing
Seal: NAK SKF
Certificate: IS09001,CE,3C,OEM
Warranty 12 months
Input Power. 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,
1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw
IEC Flange:
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,
100B5,100B14,112B5,112B14,132B5,160B5
Lubricant Synthetic &Mineral







NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 0NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 1

NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 2

NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 3NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 4

NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 5NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 6NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 7NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 8

NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 9

NRV Series 025 030 040 Worm Reducer Premium Gears 1400rpm 10
