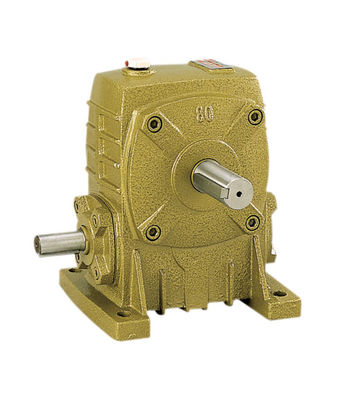

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission

Products

Rotary Airlock Valve

anna@rotary-reducer.com

+86-15300538565

Contact Now

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	5-8 work days
Payment Method:	L/C, T/T
Supply Capacity:	150sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

NMRV Worm Gear Speed Reducer

Gearing Arrangement:

Output Torque:

4.5-2590N

Output Speed:

14-280rpm

Voltage:

220V-380v

Weight (KG):

Speed Ratio:

5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers

Input Speed:

1400rpm

Ratio:

20-60

Highlight:

WPW 40 worm reducer gearbox

Agricultural Transmission worm reducer gearbox

WPX worm speed reducer

Product Description

WPA WPS WPO WPX WPW 40 worm speed reducer agricultural reducer transmission Gearbox

Description

1. Cast iron body, easy to assemble and disassemble;
2. Wide speed ranges and high torque;
3. Low noise, good sealing performance, heavy duty application;
4. Stable and safe, long lifetime, universal;
5. Multi-structure, various assembling methods

Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
pls check the oil level in regular time.

Specification :

Model	Ratio	A	AB	B	BB	CC	H	LL	M	N	E	F	G	Z	Input Shaft			Output Shaft			Weight (kg)	Oil(L)
Model	Ratio	A	AB	B	BB	CC	H	LL	M	N	E	F	G	Z	HS	U	T*V	LS	S	W*Y	Weight (kg)	Oil(L)
40		143	87	114	74	40	141	60	90	100	70	80	13	10	25	12	4*2.5	28	14	5*3	4	0.3
50		175	107	150	97	50	180	80	120	140	95	110	15	12	30	12	4*2.5	40	17	5*3	7	0.45
60		198	122	168	112	60	207	90	130	150	105	120	20	12	40	15	5*3	50	22	6*3.5	10	0.55
70		231	140	194	131	70	238	105	150	190	115	150	20	15	40	18	6*3.5	60	28	8*4	15	0.8
80	1/10 1/15 1/20	261	160	214	142	80	270	120	170	220	135	180	20	15	50	22	6*3.5	65	32	10*5	20	1.1
100	1/10 1/15 1/20	322	190	254	169	100	331	150	190	270	155	220	25	15	50	25	8*4	75	38	10*5	35	2.9
120	1/25 1/30 1/40	381	229	282	190	120	423	180	230	320	180	260	30	18	65	30	8*4	85	45	14*5.5	60	4.4
135	1/25 1/30 1/40	433	260	317	210	135	482	215	250	350	200	290	30	18	75	35	10*5	95	55	16*6	80	6.2
147	1/50 1/60	438	262	324	212	147	495	203	250	350	200	280	32	18	80	35	10*5	95	55	16*6	90	6.35
155		504	302	382	252	155	541	235	275	390	220	320	35	21	85	40	12*5	110	60	18*7	110	6.5
175		545	325	402	262	175	594	260	310	430	250	350	40	21	85	45	14*5.5	110	65	18*7	150	8
200		587	350	467	305	200	677	290	360	480	290	390	40	24	95	50	14*5.5	125	70	20*7.5	215	9.3
250		705	420	552	360	250	824	350	460	560	380	480	45	28	110	60	18*7	155	90	25*9	360	18

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 0

Product structural drawing

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 3

Model and structurere table

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 4

Dimensions of outline installation : WPA , WPX, WPO ,WPS

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 5

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 6

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 7

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 8

Packing and shipping :

standard export wooden case

WPX WPW 40 speed Worm Reducer Gearbox Agricultural Transmission 9
