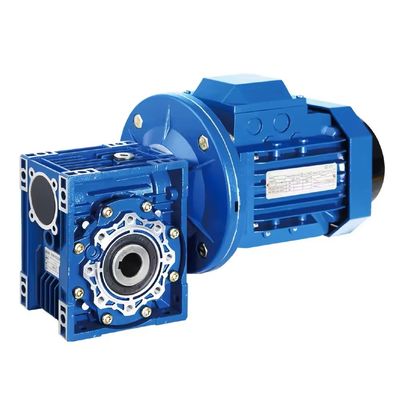

Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v
  • name
  • name
  • name

Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 5-8 work days
Payment Method: L/C, T/T
Supply Capacity: 150sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
UP TO 2320
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Weight (KG):
6kg
Speed Ratio:
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers
Input Speed:
1400rpm Or Other
Input Form:
IEC Flange For Mounting Motor
Output Form:
Solid Or Hollow Shaft,flange Output
Highlight:

Customized Worm Gear Reducer

,

220V Worm Gear Reducer

,

380v servo worm reducer

Product Description

Customized B3 0.37-7.5KW Packaging Machinery And Equipment Worm Gear Reducer



Description



The worm gear reducer is designed to seamlessly fit with motors of corresponding installation sizes. Its compact size makes it particularly suitable for machines with limited space constraints. Primarily utilized for reducing motor speeds, this worm gear reducer finds extensive applications across various machinery types.

the worm gear reducer functions as a power transmission mechanism, utilizing gear speed conversion to decrease the revolutions of a motor to the desired level while increasing torque output significantly.

Please note that due to variations in monitors and differing conditions during photography, there may be slight discrepancies in color representation.

Technical Parameters:

Material Composition for Worm Reducer:

Housing: Aluminum alloy die-cast
Worm Gear: Nodular cast iron and bronze



Features of Worm Reducer Gearbox:

  1. Premium quality aluminum alloy die-cast gearbox
  2. Precision-engineered worm gear and shaft
  3. Minimal noise generation and reduced temperature elevation
  4. User-friendly installation and connection process, ensuring high operational efficiency





Specification:


Model:
NMRV025,030,040,050,063,075,090,110,130,150
Ratio: 1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue,Silver Or On Customer Request
Noise: low noise(<50DB)
Advantage

Eficient and safe operating
Material:
Housing Die-Cast Aluminum Alloy

Worm Gear-Bronze 9-4#
Worm-20CrMnTi with carburizing and quenching,surface harness is 56-
62HRC
Shaf-chromium steel-45#
Packing Carton and Wooden Case
Bearing C&U Bearing
Seal: NAK SKF
Certificate: IS09001,CE,3C,OEM
Warranty 12 months
Input Power. 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,
1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw
IEC Flange:
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,
100B5,100B14,112B5,112B14,132B5,160B5
Lubricant Synthetic &Mineral







Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 0Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 1

Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 2Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 3



Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 4Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 5

Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 6Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 7Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 8Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 9

Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 10

Customized Servo Worm Gear Reducer B3 0.37-7.5KW 220V-380v 11
