NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom
  • name
  • name

NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 5-8 work days
Payment Method: L/C, T/T
Supply Capacity: 150sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
2.6-1195N.M
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Highlight:

NRV90 worm speed reducer

,

NRV110 worm speed reducer

,

40 1 worm gear Reducer

Product Description

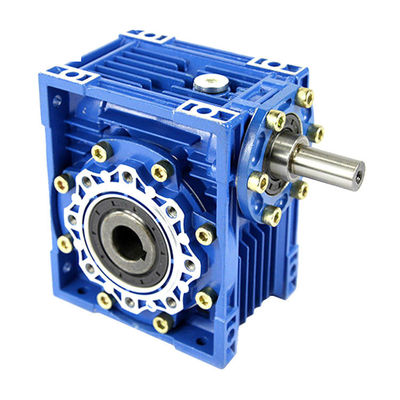

Nrv50, Nrv63, Nrv75, Nrv90, Nrv110, Nrv130, Nrv150 Worm Hard Toothed Gear Reducer



Description



NMRV reducer  belong to the warm gear speed reducer , it is a new type of reducer, also known as RV reducer. "NMRV" is a general term, it refers to the aluminum shell reducer, and it has been accustomed to call the aluminum shell reducer "NMRV reducer" internationally. The main components are oil seal, oil hydrant, worm gear box, ball bearing, output shaft, worm gear, worm, output shaft, motor connecting plate (flange), output shaft cover, hexagonal socket head screw, double round key, gasket, etc. One of the NMRV series reducers, BHADE reducers, some have single flange input, some have flange output or double shaft output, etc.



Technical Parameters:

Ratio: 20:1

Mounting Flange: 56C

Material: Cast Aluminum

Max. Rated Horsepower: 1.14HP

Input Shaft Diameter: 5/8 inch

Output Shaft Diameter: 1 inch

Input Shaft Length / Depth: 1-7/8 inch

Output Shaft Length / Depth: 3-5/8 inch




Model:
NMRV025,030,040,050,063,075,090,110,130,150
Ratio: 1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue,Silver Or On Customer Request
Noise: low noise(<50DB)
Advantage

Eficient and safe operating
Material:
Housing Die-Cast Aluminum Alloy

Worm Gear-Bronze 9-4#
Worm-20CrMnTi with carburizing and quenching,surface harness is 56-
62HRC
Shaf-chromium steel-45#
Packing Carton and Wooden Case
Bearing C&U Bearing
Seal: NAK SKF
Certificate: IS09001,CE,3C,OEM
Warranty 12 months
Input Power. 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,
1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw
IEC Flange:
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,
100B5,100B14,112B5,112B14,132B5,160B5
Lubricant Synthetic &Mineral







NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 0NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 1

NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 2

NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 3NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 4NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 5NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 6

NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 7

NRV50 NRV90 NRV110 Worm Speed Reducer 40:1 Gear Ratio Custom 8
