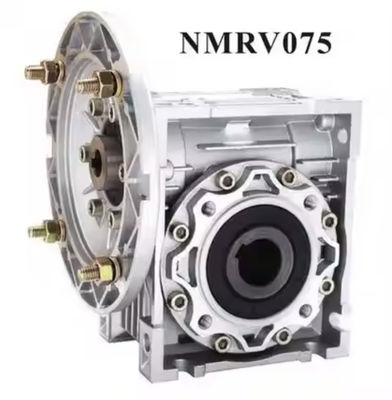

NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox
  • name
  • name

NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 5-8 work days
Payment Method: L/C, T/T
Supply Capacity: 150sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
2.6-1195N.M
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Weight (KG):
6kg
Speed Ratio:
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers
Highlight:

NMRV075 right angle worm gear reducer

,

28mm right angle worm gear reducer

,

24mm double worm reduction gearbox

Product Description

RV75 Worm Gear Reducer NMRV075 19mm 24mm 28mm Input Hole 7.5:1-100: 1 Gear Ratio Worm Gearbox For 0.55KW-4KW Motor



Description



NMRV/NRV Series Worm and Gear Motor
NMRV Series High Quality Worm Gear Motor contains worm gear reducer and motor(Including three phrese AC motor,single AC motor,DC servo motor and DC PM motor).The square aluminum gearbox is manufactured based on GB1055588 cylindrical gear parameter.During the process, many advanced technologies are adopted.So it has compact structure, good appearance and excellent heatsink when runing.
This series motor has the following characteristics:smooth running, low noise, large transmission ratio and strange loadcapacity and it may match with different kinds of motors for realizing speed adjustment.
Working principle
High quality ac 230v hollow shaft worm gear motor is used to transfer rotation and torque from motor to working machine,the function is to decrease speed by gears and increase torque
Design characteristics
1:Use low-carbon Aluminium Alloy cementation processing completely.
2:High precision on gear and gear shaft.
3:Small volume with big torque.



Specification:


Model:
NMRV025,030,040,050,063,075,090,110,130,150
Ratio: 1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue,Silver Or On Customer Request
Noise: low noise(<50DB)
Advantage

Eficient and safe operating
Material:
Housing Die-Cast Aluminum Alloy

Worm Gear-Bronze 9-4#
Worm-20CrMnTi with carburizing and quenching,surface harness is 56-
62HRC
Shaf-chromium steel-45#
Packing Carton and Wooden Case
Bearing C&U Bearing
Seal: NAK SKF
Certificate: IS09001,CE,3C,OEM
Warranty 12 months
Input Power. 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,
1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw
IEC Flange:
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,
100B5,100B14,112B5,112B14,132B5,160B5
Lubricant Synthetic &Mineral







NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 0NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 1

NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 2

NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 3NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 4

NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 5NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 6NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 7NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 8

NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 9

NMRV075 19mm 24mm 28mm Right Angle Worm Gear Reducer Double Reduction Gearbox 10
