Double Speed Worm Gear Reducer Motor Transmission Reduction NMRV030 RV30 B14
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 150sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
UP TO 2320
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Weight (KG):
6kg
Speed Ratio:
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers
Input Speed:
1400rpm Or Other
Input Form:
IEC Flange For Mounting Motor
Output Form:
Solid Or Hollow Shaft,flange Output
Highlight:
RV30 nmrv worm gear reducer
,Transmission Reduction nmrv worm gear reducer
,NMRV030 double reduction gearbox
Product Description

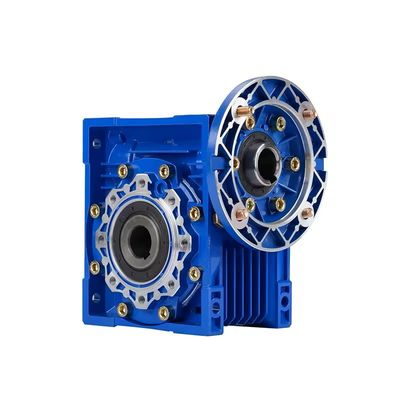

Double Speed Worm Gear Reducer Motor Transmission Reduction NMRV030 RV30 B14
Product Specifications
| Attribute | Value |
|---|---|
| Gearing Arrangement | Worm |
| Output Torque | UP TO 2320 |
| Rated Power | 0.06-15KW |
| Output Speed | 14-280rpm |
| Voltage | 220V-380v |
| Weight | 6kg |
| Speed ratio | 5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 |
| Input speed | 1400rpm or other |
| Input Form | IEC flange for mounting motor |
| Output Form | Solid or Hollow shaft, flange output |
Product Description
The NMRV030 RV30 B14 worm gear speed reducer motor provides a high-quality transmission solution for industrial applications including manufacturing plants, food processing, and construction.
Key Features
- Versatile Ratios: Available in multiple gear ratios (5-100:1) to meet various speed reduction requirements
- Durable Construction: High-quality aluminum housing with bronze worm gear for long-lasting performance
- Compact Design: Lightweight (1.5kg) and space-efficient for installation in confined spaces
- Customization Options: OEM support available for tailored solutions
- Quality Components: Features premium bearings (C&U), seals (NAK/SKF), and lubricants
- Certified Quality: Compliant with ISO9001, CE, and 3C standards
Technical Specifications
| Model | NMRV025,030,040,050,063,075,090,110,130,150 |
|---|---|
| Material | Housing: Die-Cast Aluminum Alloy Worm Gear: Bronze 9-4# Worm: 20CrMnTi with carburizing/quenching (56-62HRC) Shaft: Chromium steel-45# |
| Noise Level | Low noise (<50DB) |
| Packing | Carton and Wooden Case |
| Warranty | 12 months |
| Input Power | 0.06kw to 15kw |
Product Images
Our speed reducers are manufactured to ISO9001 standards using premium components including SKF oil seals, Shell lubricants, and NSK bearings. All products undergo strict quality control and are available from stock. Custom solutions are available upon request.
