OEM NMRV63 90 110 Drive Transmission Double Reduction Worm Gearbox
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 150sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
UP TO 2320
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Weight (KG):
6kg
Speed Ratio:
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers
Input Speed:
1400rpm Or Other
Input Form:
IEC Flange For Mounting Motor
Output Form:
Solid Or Hollow Shaft,flange Output
Highlight:
NMRV63 double reduction worm gearbox
,NMRV90 double reduction worm gearbox
,OEM nmrv 63 gearbox
Product Description
OEM NMRV63 90 110 Drive Transmission Double Reduction Worm Gearbox
Product Specifications
| Attribute | Value |
|---|---|
| Gearing Arrangement | Worm |
| Output Torque | UP TO 2320 |
| Rated Power | 0.06-15KW |
| Output Speed | 14-280rpm |
| Voltage | 220V-380v |
| Weight | 6kg |
| Speed Ratio | 5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 |
| Input Speed | 1400rpm or other |
| Input Form | IEC flange for mounting motor |
| Output Form | Solid or Hollow shaft, flange output |
Product Description
The NMRV63 90 110 Worm Gear Drive Transmission offers a ratio of 50:100 with big torque capacity, designed as an RV worm reducer gearbox. Manufactured according to European standards, this product features high-quality artificial oil, imported seal parts, and advanced manufacturing technology.
Key Features
- Lightweight aluminum alloy housing provides superior strength and excellent heat dissipation
- Beautiful appearance with compact design for easy installation
- Low noise operation (<50DB) with high efficiency
- Versatile connection options with motors, CVT, and flange electromagnetic clutch brake units
- Supports all-round installation with stable operation and large output torque
- Combination of domestic and international advanced technology for high practicality
Technical Specifications
| Models: | NMRV025,030,040,050,063,075,090,110,130,150 |
| Ratios: | 1:5,7.5,10,15,20,25,30,40,50,60,80,100 |
| Materials: |
Housing: Die-Cast Aluminum Alloy Worm Gear: Bronze 9-4# Worm: 20CrMnTi with carburizing and quenching (56-62HRC) Shaft: Chromium steel-45# |
| Certifications: | ISO9001, CE, 3C, OEM |
| Warranty: | 12 months |

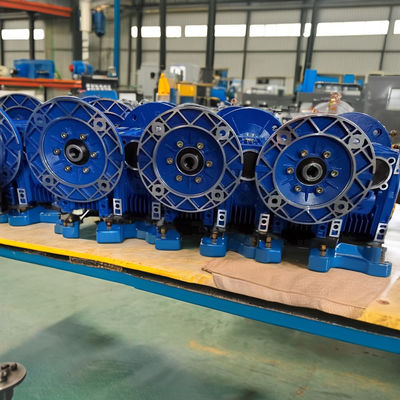

Product Images
Our speed reducers are manufactured in strict accordance with ISO9001 standards, using high-quality components including SKF oil seals, Shell lubricants, and NSK bearings. All products undergo stringent quality control and are available from stock. Custom solutions are available upon request.
