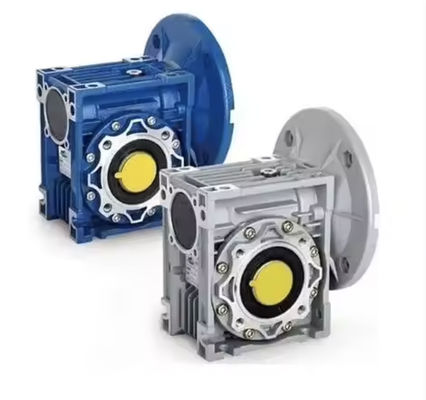

NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor
  • name
  • name

NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 5-8 work days
Payment Method: L/C, T/T
Supply Capacity: 150sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
UP TO 2320
Rated Power:
0.06-15KW
Output Speed:
14-280rpm
Voltage:
220V-380v
Weight (KG):
6kg
Speed Ratio:
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers
Input Speed:
1400rpm Or Other
Input Form:
IEC Flange For Mounting Motor
Output Form:
Solid Or Hollow Shaft,flange Output
Highlight:

NMRV worm gear gearbox

,

RV63 worm gear gearbox

,

NMRV 040 gear speed reducers

Product Description

NMRV 040 NMRV 075 RV63 WORM GEAR BOX REDUCER SERVO MOTORGEARBOX STEPPER MOTOR REDUCER



Description

NMRV gear reducers are divided into two-stage and single-stage. Please refer to the detailed introduction

Single Stage Worm Gear Reducer
1.The reducer which model is 25~90 made of Aluminum alloy die-casting box,good looking in appearance,compact in structure,rust proofing on surface and small volume to save mounting space.
2 .The reducer model of 110~150 is made of cast iron which casted with Aluminum mould.It's good looking and solid ,and can be used through the setting of multi-azimuth.
3.Good radiating characteristic leads safe and reliability and high efficiency for using.
4. The strong capacity of loading ensure stable transmission,make less vibration and noise.
5.Varies of connecting structure for power input and torque output meet different require-merits;the design of box outline
and the set of foot hole with good versalityis apt to many kinds of mounting.

Double Stage Worm Gear Reducer
1.It is combined by two single stage reducers and has all the virtues of them.And you can get bigger ratio with it.
2.The models of 25/30,25/40,30/40,30/50,30/63,40175,40/90,50/110,63/130,63/150are in common use.You can choose 25,30,40,50,63,75,90,110,130,150ascombinationunits to combine according to the fact of your special needs.

Specification:


Model:
NMRV025,030,040,050,063,075,090,110,130,150
Ratio: 1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue,Silver Or On Customer Request
Noise: low noise(<50DB)
Advantage

Eficient and safe operating
Material:
Housing Die-Cast Aluminum Alloy

Worm Gear-Bronze 9-4#
Worm-20CrMnTi with carburizing and quenching,surface harness is 56-
62HRC
Shaf-chromium steel-45#
Packing Carton and Wooden Case
Bearing C&U Bearing
Seal: NAK SKF
Certificate: IS09001,CE,3C,OEM
Warranty 12 months
Input Power. 0.06kw,0.09kw,0.12kw,0.18kw,0.25kw,0.37kw,0.55kw,0.75kw,1.1kw,
1.5kw,2.2kw,3kw,4kw,5.5kw,7.5kw,11kw,15kw
IEC Flange:
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,
100B5,100B14,112B5,112B14,132B5,160B5
Lubricant Synthetic &Mineral







NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 0NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 1

NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 2NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 3



NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 4NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 5

NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 6NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 7NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 8NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 9

NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 10

NMRV 040 075 RV63 Worm Gear Gearbox Reducers Servo Motor 11





we produce speed reducers in strict accordance with ISO9001 standard to provide our customers with high quality gearboxes at competitive prices. Our gearboxes are equipped with accessories from international famous brands, such as oil seal from SKF brand,lubricant from Shell brand, and bearing from NSK brand. The housing and gear are produced in our company under stringent quality control. All our products are available in large stocks, and we can also provide you with customized reducer solutions, pleasefeel confident to contact us.





















































































































































































































































































Tags:

worm speed reducer,

double reduction worm gear reducer,

worm drive reduction gearbox
