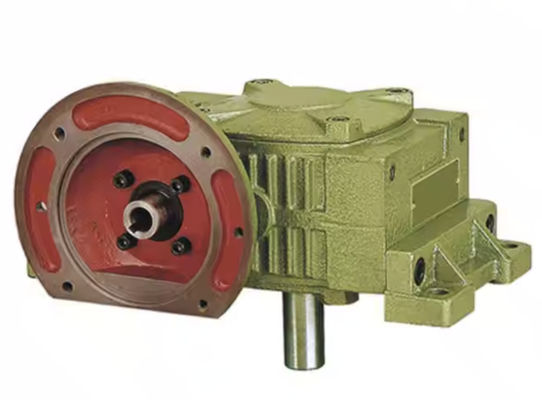

WPA WPD WPWD WPDS Copper Speed Worm Gear Reducer Gearbox
| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | standard export wooden case |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 150sets per month |
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
NMRV Worm Gear Speed Reducer
Gearing Arrangement:
Worm
Output Torque:
4.5-2590N
Output Speed:
14-280rpm
Voltage:
220V-380v
Weight (KG):
6kg
Speed Ratio:
5 7.5 10 15:1 20 25 30 40 50 60 80 100:1 For Customers
Input Speed:
1400rpm
Ratio:
20-60
Highlight:
WPDS Worm Gear Reducer
,WPWD Worm Gear Reducer
,Copper worm gear speed reducer
Product Description
WPA WPD WPWD WPDS Copper Speed Worm Gear Reducer Gearbox
Key Specifications
| Gearing Arrangement | Worm |
| Output Torque | 4.5-2590N |
| Output Speed | 14-280rpm |
| Voltage | 220V-380V |
| Weight | 6kg |
| Speed Ratio | 5:1 to 100:1 (customizable) |
| Input Speed | 1400rpm |
| Ratio | 20-60 |
Product Overview
The WP series worm gear speed reducer features a worm made of 45# high-quality heat-treated steel and a worm wheel cast with tin bronze for exceptional wear resistance and bearing capacity. Ideal for various industrial applications including plastics, metallurgy, beverage production, mining, lifting equipment, and chemical construction.
Key Features
- Smooth operation with minimal vibration, impact, and noise
- Large deceleration ratio with wide versatility for multiple mechanical applications
- Compact single-stage transmission capable of achieving high transmission ratios
- Excellent self-locking properties, eliminating need for braking devices in many applications
- Manufactured to national standards with compatible standard components
Technical Considerations
- Higher meshing friction results in lower efficiency compared to gear transmissions
- Requires proper lubrication and cooling systems due to heat generation
Technical Specifications
| Model | Ratio | A | AB | B | BB | CC | H | LL | M | N | E | F | G | Z | Input Shaft | Output Shaft | Weight (kg) | Oil (L) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 143 | 87 | 114 | 74 | 40 | 141 | 60 | 90 | 100 | 70 | 80 | 13 | 10 | 25 | 12 | 4*2.5 | 4 | 0.3 |
Product Images
Technical Drawings
Additional Specifications
Packaging & Shipping
Standard export wooden case packaging ensures safe transportation.
