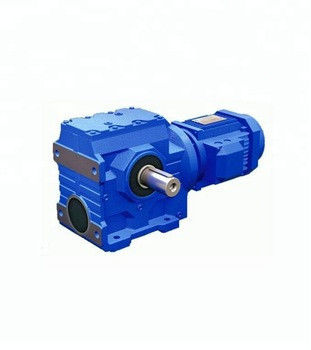

S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

CE. ISO9001

Model Number

S/sa/saf/saz/sf37

Output Torque:

10-4890(N.M)

Input Speed:

1450rpm

Output Speed:

0.12-397(rpm)

Warranty:

1 Year

Color:

Customer Requirement

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Foot,flange,torque,arm,hollow/s

Gearing Arrangement:

Lubricating Oil:

GB L-CKC220-460,Shell Omala220-460

Highlight:

S47 Helical Gear Reducer

Vertical Helical Gear Reducer

S57 helical parallel shaft gearbox

Product Description

S57 S47 Vertical Helical Gear Reducer Parallel Shaft Gearbox 0.12-22KW

Product Attributes

Attribute	Value
Output Torque	10-4890 (N.M)
Input Speed	1450rpm
Output Speed	0.12-397 (rpm)
Warranty	1 year
Color	Customer Requirement
Efficiency	94%~98% (depends on the transmission stage)
Mounting Position	Foot, flange, torque, arm, hollow/s
Gearing Arrangement	Worm
Lubricating oil	GB L-CKC220-460, Shell Omala220-460

Product Description

The S-series worm-helical gearbox reducer is a highly efficient mechanical transmission device. This reducer combines the design of worm and helical gear, which provides excellent torque transmission and high efficiency. The S-series reducer has a simple and sophisticated design that achieves cost-effectiveness while delivering excellent performance.

The S-series worm-helical gearbox reducer can be individually adjusted for torque and speed according to needs, enabling space-saving installation. These reducers are available with two-stage, three-stage, four-stage and five-stage reduction ratios, and can be installed in foot, flange or shaft configurations as needed. Models with motor, ready-to-install motor or with keyway input shaft are available to meet different application scenarios.

The S-series worm-helical gearbox reducer is widely used in various industrial fields due to its reliability, high efficiency and flexibility, making it an ideal choice for power transmission and speed regulation.

Technical Specifications

Specification	Value
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62°
Gear core hardness	HRC33~40
Input/Output shaft material	42CrMo alloy steel
Input/Output shaft hardness	HRC25~30
Machining precision of gears	Accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	Tempering, cementiting, quenching, etc.
Efficiency	94%~96% (depends on the transmission stage)
Noise (MAX)	60~68dB
Temp. rise (MAX)	40℃
Temp. rise (Oil) (MAX)	50°C
Vibration	≤20μm
Backlash	≤20 Arcmin
Brand of bearings	China top brand bearing, or other brands requested

Size and Performance Data

Size	Shaft Dia. (mm)		Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
Size	Solid	Hollow	Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
37	φ20k6	φ20h7	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6	φ25h7	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6	φ30h7/35h7	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6	φ40h7/45h7	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6	φ50h7/60h7	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6	φ60h7/70h7	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6	φ70h7/90h7	280	φ450	1.50-22.0	12.5-230.48	4000	170
