Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

CE. ISO9001

Model Number

S/sa/saf/saz/sf37

Output Torque:

10-4890(N.M)

Input Speed:

1450rpm

Output Speed:

0.12-397(rpm)

Warranty:

1 Year

Color:

Customer Requirement

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Foot,flange,torque,arm,hollow/s

Gearing Arrangement:

Lubricating Oil:

GB L-CKC220-460,Shell Omala220-460

Gear Material:

20CrMnTi Alloy Steel

Surface Hardness Of Gears:

HRC58°~62°

Gear Core Hardness:

HRC33~40

Highlight:

transmission Helical Gear Reducer

speed reduction Helical Gear Reducer

transmission parallel shaft helical gearmotor

Product Description

Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft

Product Specifications

Attribute	Value
Output Torque	10-4890 (N.M)
Input Speed	1450rpm
Output Speed	0.12-397 (rpm)
Warranty	1 year
Color	Customer Requirement
Efficiency	94%~98% (depends on the transmission stage)
Mounting Position	Foot, flange, torque, arm, hollow/s
Gearing Arrangement	Worm
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62°
Gear core hardness	HRC33~40

Product Description

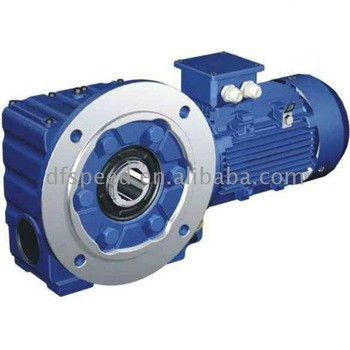

S series gear reducer Helical Motor Reducer for Agriculture

S series: right-angle speed reduction gearing composed by helical gears, worms, and gears, optimized and designed according to international standard. High precision, high efficiency, fine classification in transmission ratio, wide range, large transmission torque, reliable performance, low noise, flexible installation, and convenient use and maintenance.

S series is one kind of Helical worm gearbox, designed as Modularization and high-stainless cast iron case. It is combination of helical gear and worm gear, which with higher efficiency and strength than simple aluminum alloy worm gearbox. Due to their outstanding efficiency, these drives can be used in every industrial sector and tailored to individual torque and speed requirements. The gear ratios afforded by the helical-worm gear stage and the low noise levels during operation make these gearmotors ideal low-cost solutions for simple applications.

Technical Specifications

SIZE	Shaft Dia. (mm)	Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque(N.m)	Weight (kgs)
Solid Hollow	φ20k6 φ20h7	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6 φ25h7	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6 φ30h7/35h7	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6 φ40h7/45h7	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6 φ50h7/60h7	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6 φ60h7/70h7	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6 φ70h7/90h7	280	φ450	1.50-22.0	12.5-230.48	4000	170

Product Images

Why Choose Us

Reducer Process

Packing and Shipping

Frequently Asked Questions

Q1: What should I provide when I choose gearbox/speed reducer?

A1: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:

Type, model and torque
Ratio or output speed
Working condition and connection method
Quality and installed machine name
Input mode and input speed
Motor brand model or flange and motor shaft size

Q2: Are you a manufacturer?

A2: [Manufacturer information would be inserted here]
