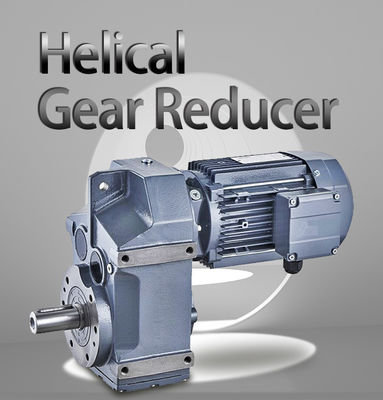

Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines
  • name
  • name
  • name
  • name
  • name

Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE
Model Number
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Output Torque:
10.6-952000NM
Input Speed:
750-1500rpm
Output Speed:
14-280rpm
Warranty:
1 Year
Color:
Customer Requirement
Ratio:
3.77~276.77
Efficiency:
94%~98%(depends On The Transmission Stage)
Mounting Position:
Flange, Hollow Shaft, Solid Shaft
Certificate:
ISO9001. CE
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material:
Gear: 20CrMnTi Housing: HT250 High Strength Cast Iron
Product Name:
Precision Crafted F Series Parallel Shaft Helical Gearbox Reducer For Automotive Assembly Lines
Highlight:

Precision Helical Gear Reducer

,

Automotive Helical Gear Reducer

,

Precision helical parallel shaft gearbox

Product Description
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines
Product Specifications
Output Torque 10.6-952000NM
Input Speed 750-1500rpm
Output Speed 14-280rpm
Warranty 1 year
Ratio 3.77~276.77
Efficiency 94%~98%(depends on the transmission stage)
Mounting Position Flange, hollow shaft, solid shaft
Certificate ISO9001, CE
Material Gear: 20CrMnTi, Housing: HT250 high strength cast iron
Product Description

The Helical Gearbox Reducer F Series Gear Reducer features a parallel output design that integrates standardization and modularization. This ensures compatibility with leading international brands while maintaining structural rigidity and compactness. Ideal for space-constrained applications, these gear reducers are perfect for conveyors and materials processing setups.

Available in 2 or 3 stages to cater to low output speed requirements, they feature a hollow output shaft with versatile connection options including keyed connection, shrink disk, splined hollow shaft, or torque arm. For enhanced flexibility, these gear reducers can be paired with other gearbox types like the R Series and UDL Series.

Technical Specifications
Size Shaft Dia. (mm)
Solid/Hollow		 Center Height Output Flange Dia. (mm) Power (kw) Ratio Permissible Torque (n.m) Weight (kgs)
37 φ25k6/φ30h7 76 φ110/160 0.18-3.0 3.81-128.51 200 13
47 φ30k6/φ35h7 77 φ120/200 0.18-3.0 5.06-189.39 400 18
57 φ35k6/φ40h7 93 φ155/250 0.18-5.50 5.18-199.70 600 34
67 φ40k6/φ40h7 97 φ155/250 0.18-5.50 4.21-228.91 820 55
77 φ50k6/φ50h7 121 φ170/300 0.37-11.0 4.30-281.71 1500 90
87 φ60m6/φ60h7 152 φ215/350 0.75-22.0 4.12-270.68 3000 150
97 φ70m6/φ70h7 178 φ260/450 1.10-30.0 4.68-280.76 4300 260
107 φ90m6/φ90h7 200 φ304/450 2.20-45.0 6.20-254.40 7840 402
127 φ110m5/φ100h7 236 φ350/550 7.5-90.0 4.63-172.17 12000 700
157 φ120m6/φ120h7 286 φ400/660 11.0-200.0 11.92-267.43 18000 950
Structure Types
  • F Type: Common shaft extension coupling parallel shaft helical gear reducer
  • FA Type: Shaft-mounted parallel shaft helical gear reducer
  • FF Type: Flanged parallel shaft oblique gear Gear reducer
  • FAF Type: Shaft mounted flange type parallel shaft helical gear reducer
Applications

Widely used in industrial machinery including:

  • Food processing
  • Ceramics manufacturing
  • Chemical processing
  • Packaging systems
  • Dyeing equipment
  • Wood working machinery
  • Glass production
Product Images
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 0
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 1
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 2
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 3
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 4
Quality Assurance
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 5
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 6
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 7
Manufacturing Process
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 8
Packaging & Shipping
Precision Helical Gear Reducer Parallel Shaft Gearbox For Automotive Assembly Lines 9
