S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft
  • name
  • name
  • name
  • name
  • name
  • name

S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft

MOQ: 1
Price: negotiation
Standard Packaging: standard export wooden case
Delivery Period: 8-15work days
Payment Method: T/T
Supply Capacity: 100sets per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
FANBAO
Certification
CE. ISO9001
Model Number
S/sa/saf/saz/sf37
Output Torque:
10-4890(N.M)
Input Speed:
1450rpm
Output Speed:
0.12-397(rpm)
Warranty:
1 Year
Color:
Customer Requirement
Efficiency:
94%~98%(depends On The Transmission Stage)
Mounting Position:
Foot,flange,torque,arm,hollow/s
Gearing Arrangement:
Worm
Highlight:

S Series Helical Gear Reducer

,

Solid Shaft Helical Gear Reducer

,

Solid Shaft gearbox helical gear

Product Description
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft
Product Specifications
Attribute Value
Output Torque 10-4890 (N.M)
Input Speed 1450rpm
Output Speed 0.12-397 (rpm)
Warranty 1 year
Color Customer Requirement
Efficiency 94%~98% (depends on the transmission stage)
Mounting Position Foot, flange, torque, arm, hollow/s
Gearing Arrangement Worm
Product Description

Our high-efficiency helical-worm gear units feature a simple yet effective design. The accompanying figure showcases a gearmotor integrated with a helical-worm gear unit, emphasizing its cost-effectiveness.

The ability to individually adjust torque and speed facilitates space-saving installations of our helical-worm gear units. Available in various configurations, including double, triple, quadruple, and quintuple reduction units, they can be mounted on foot, flange, or shaft. Choose from motorised, motor-ready, or reducer options with a keyed input shaft for added versatility.

Experience the convenience and efficiency of our helical-worm gear units, tailored for diverse industrial applications.

Key Features
  • Compact structure, modular design
  • High efficiency of the gear units of over 90%
  • Long service life
  • Multi-stage (2 or 3 stages) gear units for low output speed
  • Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
  • Can be combined with other types of gearboxes (Such as R Series, UDL Series)
Main Application Industries
  • Food light industry, electrical machinery, engineering machinery, metallurgical machinery
  • Cement machinery, environmental protection machinery, electronic appliances, road construction machinery
  • Water conservancy machinery, chemical machinery, mining machinery, transportation machinery
  • Building materials machinery, rubber machinery, petroleum machinery and other industries
Technical Specifications
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62°
Gear core hardness HRC33~40
Input/Output shaft material 42CrMo alloy steel
Input/Output shaft hardness HRC25~30
Machining precision of gears Accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment Tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. rise (MAX) 40℃
Temp. rise (Oil) (MAX) 50°℃
Vibration ≤20μm
Backlash ≤20Arcmin
Brand of bearings China top brand bearing, or other brands requested
Size Specifications
SIZE Shaft Dia. (mm) Center Height Output Flange Dia. (mm) Power (kw) Ratio Permissible Torque(N.m) Weight (kgs)
37 φ20k6 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 280 φ450 1.50-22.0 12.5-230.48 4000 170
Product Images

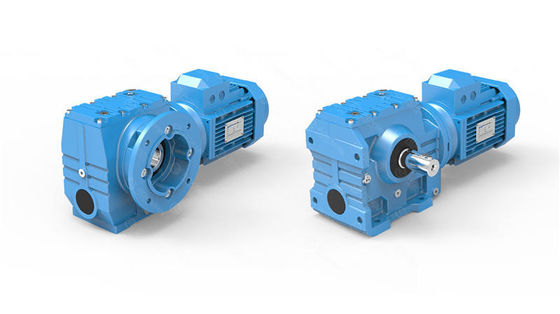

S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 0
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 1
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 2
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 3
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 4
Quality Control Standards
  • Body / Box Body:
    • The section of the cover and the body shall be smooth and smooth to ensure tight assembly. Check the contact tightness of the section, that is, the insertion depth of the plug ruler less than 0.05mm shall not be greater than 1/3 of the section.
    • The upper cover and the body shall not crack, and the kerosene inspection shall not contain leakage.
  • Dute Line Cylindrical Gear:
    • The gear shall not have defects in burrs, cracks, fractures, etc.
    • Gear engagement that the tooth height and tooth width is not greater than 20%.
    • Gear must be correctly engaged after assembly and its contact area shall meet the provisions.
    • The side clearance of gear engagement shall meet specified standards.
    • The top gap of the gear engagement is 0.2~0.3m (m is the normal modulus).
    • Check the side and top clearance of the gear by pressure lead method.
    • The center distance limit deviation of both gears shall meet the provisions.
    • The parallelism of the gear centerline on the tooth width is not greater than specified.
    • The radial beat of the gear rim shall not be greater than specified.
    • The maximum allowable wear value of tooth thickness at the gear section circle shall meet standards.
  • Bevel Gear Wheel:
    • The gear must be smooth without burrs, scars, cracks, etc.
    • The limit deviation of the clip angle of the gear shaft is specified.
    • The displacement of gear centerline shall not be greater than specified.
    • The side gap of gear engagement shall meet the provisions.
    • Top gap of gear engagement is 0.2~0.3m (The m is the large-end module number).
    • The displacement of the gear cone shall not be greater than specified.
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 5
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 6
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 7
Reducer Process
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 8
Packing and Shipping
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft 9
