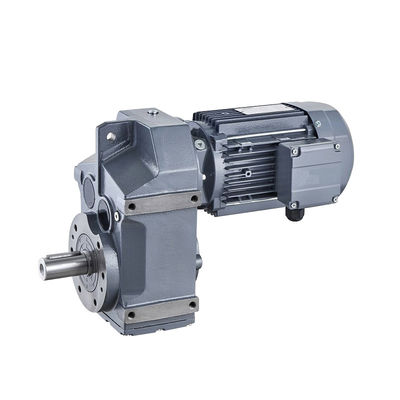

1000rpm F37 Parallel Shaft Helical Gearbox Bevel Reducer Motor

MOQ:	1
Price:	negotiation
Standard Packaging:	standard export wooden case
Delivery Period:	8-15work days
Payment Method:	T/T
Supply Capacity:	100sets per month

Details Information

Product Description

Detail Information

Place of Origin

china

Brand Name

FANBAO

Certification

Model Number

F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157

Output Torque:

10.6-952000NM

Input Speed:

750-1500rpm

Output Speed:

14-280rpm

Warranty:

1 Year

Color:

Customer Requirement

Ratio:

3.77~276.77

Efficiency:

94%~98%(depends On The Transmission Stage)

Mounting Position:

Flange, Hollow Shaft, Solid Shaft

Certificate:

ISO9001. CE

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company

Material:

Gear: 20CrMnTi Housing: HT250 High Strength Cast Iron

Product Name:

1500rpm F Series Parallel Shaft Gearbox F37 Helical Gear Reducer Motor

Highlight:

1000rpm parallel shaft helical gearbox

F37 parallel shaft helical gearbox

1000rpm helical bevel gearmotor

Product Description

1000rpm F37 Parallel Shaft Helical Gearbox Bevel Reducer Motor

Product Specifications

Attribute	Value
Output Torque	10.6-952000NM
Input Speed	750-1500rpm
Output Speed	14-280rpm
Warranty	1 year
Color	Customer Requirement
Ratio	3.77~276.77
Efficiency	94%~98% (depends on transmission stage)
Mounting Position	Flange, hollow shaft, solid shaft
Certificate	ISO9001, CE
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company
Material	Gear: 20CrMnTi, Housing: HT250 high strength cast iron

Product Description

The F Series Parallel Shaft Helical Gear Reducer features a parallel output design with standardization and modularization that allows interchangeability with international leading brands while maintaining structural rigidity and compactness.

Key Features:

Extra-slim parallel shaft design ideal for space-limited applications
Modular design with compact structure
Multi-stage (2 or 3 stages) gear units for low output speed
Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm options
Compatible with other gearbox types (R Series, UDL Series)
Multiple mounting options (foot-mounted, flange-mounted, shaft-mounted)

Technical Specifications

Size	Shaft Dia. (mm)	Center Height	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque (n.m)	Weight (kgs)
37	φ25k6	76	φ110/160	0.18-3.0	3.81-128.51	200	13
47	φ30k6	77	φ120/200	0.18-3.0	5.06-189.39	400	18
57	φ35k6	93	φ155/250	0.18-5.50	5.18-199.70	600	34
67	φ40k6	97	φ155/250	0.18-5.50	4.21-228.91	820	55
77	φ50k6	121	φ170/300	0.37-11.0	4.30-281.71	1500	90
87	φ60m6	152	φ215/350	0.75-22.0	4.12-270.68	3000	150
97	φ70m6	178	φ260/450	1.10-30.0	4.68-280.76	4300	260
107	φ90m6	200	φ304/450	2.20-45.0	6.20-254.40	7840	402
127	φ110m5	236	φ350/550	7.5-90.0	4.63-172.17	12000	700
157	φ120m6	286	φ400/660	11.0-200.0	11.92-267.43	18000	950
